https://github.com/bartneck/swiML

Main schema swiML.xsd
Namespace https://github.com/bartneck/swiML
Properties
attribute form default unqualified
element form default qualified
version 2.3
[ top ]

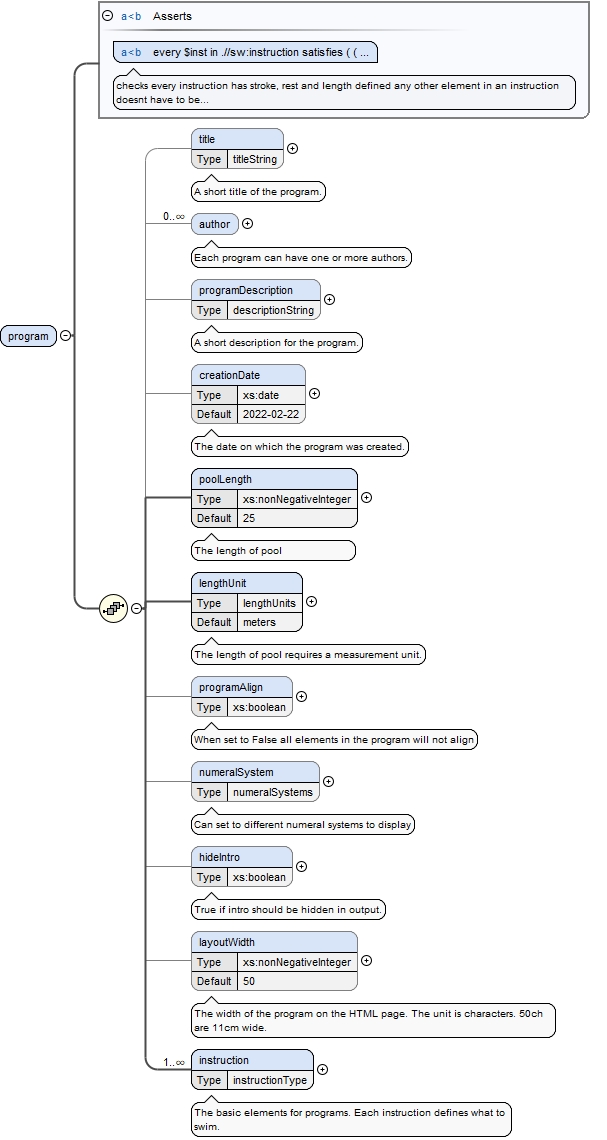

Element program
Namespace https://github.com/bartneck/swiML
Diagram
DiagramswiML.tmp#program_titleswiML.tmp#program_authorswiML.tmp#program_programDescriptionswiML.tmp#program_creationDateswiML.tmp#program_poolLengthswiML.tmp#program_lengthUnitswiML.tmp#program_programAlignswiML.tmp#program_numeralSystemswiML.tmp#program_hideIntroswiML.tmp#program_layoutWidthswiML.tmp#program_instruction
Properties
content complex
Model
Children author, creationDate, hideIntro, instruction, layoutWidth, lengthUnit, numeralSystem, poolLength, programAlign, programDescription, title
Instance

<program xmlns="https://github.com/bartneck/swiML">
  <title>{0,1}</title>
  <author>{0,unbounded}</author>
  <programDescription>{0,1}</programDescription>
  <creationDate>{0,1}</creationDate>
  <poolLength>{1,1}</poolLength>
  <lengthUnit>{1,1}</lengthUnit>
  <programAlign>{0,1}</programAlign>
  <numeralSystem>{0,1}</numeralSystem>
  <hideIntro>{0,1}</hideIntro>
  <layoutWidth>{0,1}</layoutWidth>
  <instruction>{1,unbounded}</instruction>
</program>
Asserts
Test XPath default namespace Annotation
every $inst in .//sw:instruction satisfies ( ($inst/ancestor-or-self::*/sw:stroke and $inst/ancestor-or-self::*/sw:length) or $inst/sw:repetition or $inst/sw:continue or $inst/sw:pyramid or $inst/sw:segmentName)
checks every instruction has stroke, rest and length defined
any other element in an instruction doesnt have to be defined
Source

<xs:element name="program">
  <!-- ====================================================== -->
  <!-- The meta information for each program -->
  <!-- ====================================================== -->
  <xs:complexType>
    <xs:sequence>
      <!-- The title of the program -->
      <xs:element name="title" type="titleString" minOccurs="0" maxOccurs="1">
        <xs:annotation>
          <xs:documentation>A short title of the program.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <!-- The author(s) of the program -->
      <xs:element maxOccurs="unbounded" minOccurs="0" name="author">
        <xs:annotation>
          <xs:documentation>Each program can have one or more authors.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="firstName" minOccurs="1" type="xs:string">
              <xs:annotation>
                <xs:documentation>The first name of the author. Can contain middle names if necessary.</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="lastName" minOccurs="1" type="xs:string">
              <xs:annotation>
                <xs:documentation>The last name of the author.</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element minOccurs="0" name="email" type="emailAddress">
              <xs:annotation>
                <xs:documentation>The email address of the author (optional).</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <!-- The description of the program -->
      <xs:element name="programDescription" type="descriptionString" minOccurs="0" maxOccurs="1">
        <xs:annotation>
          <xs:documentation>A short description for the program.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <!-- The date -->
      <xs:element minOccurs="0" name="creationDate" type="xs:date" maxOccurs="1" default="2022-02-22">
        <xs:annotation>
          <xs:documentation>The date on which the program was created.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="poolLength" minOccurs="1" maxOccurs="1" type="xs:nonNegativeInteger" default="25">
        <xs:annotation>
          <xs:documentation>The length of pool</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="lengthUnit" minOccurs="1" maxOccurs="1" type="lengthUnits" default="meters">
        <xs:annotation>
          <xs:documentation>The length of pool requires a measurement unit.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="programAlign" minOccurs="0" maxOccurs="1" type="xs:boolean">
        <xs:annotation>
          <xs:documentation>When set to False all elements in the program will not align</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="numeralSystem" minOccurs="0" maxOccurs="1" type="numeralSystems">
        <xs:annotation>
          <xs:documentation>Can set to different numeral systems to display</xs:documentation>
        </xs:annotation>
      </xs:element>
      <!-- Element to hide the intro text -->
      <xs:element name="hideIntro" minOccurs="0" maxOccurs="1" type="xs:boolean">
        <xs:annotation>
          <xs:documentation>True if intro should be hidden in output.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <!-- Element to set the width of the program in HTML -->
      <!-- The unit is characters. 50ch are 11cm wide -->

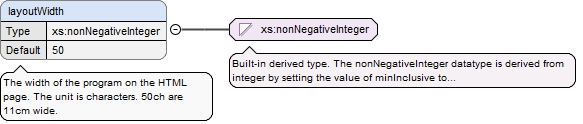

      <xs:element name="layoutWidth" minOccurs="0" maxOccurs="1" type="xs:nonNegativeInteger" default="50">
        <xs:annotation>
          <xs:documentation>The width of the program on the HTML page. The unit is characters. 50ch are 11cm wide.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <!-- ====================================================== -->
      <!-- The main element(s) for each program. Each instruction can contain instructions. This is recursion. -->
      <!-- This is the main recursive element for a program -->
      <!-- ====================================================== -->

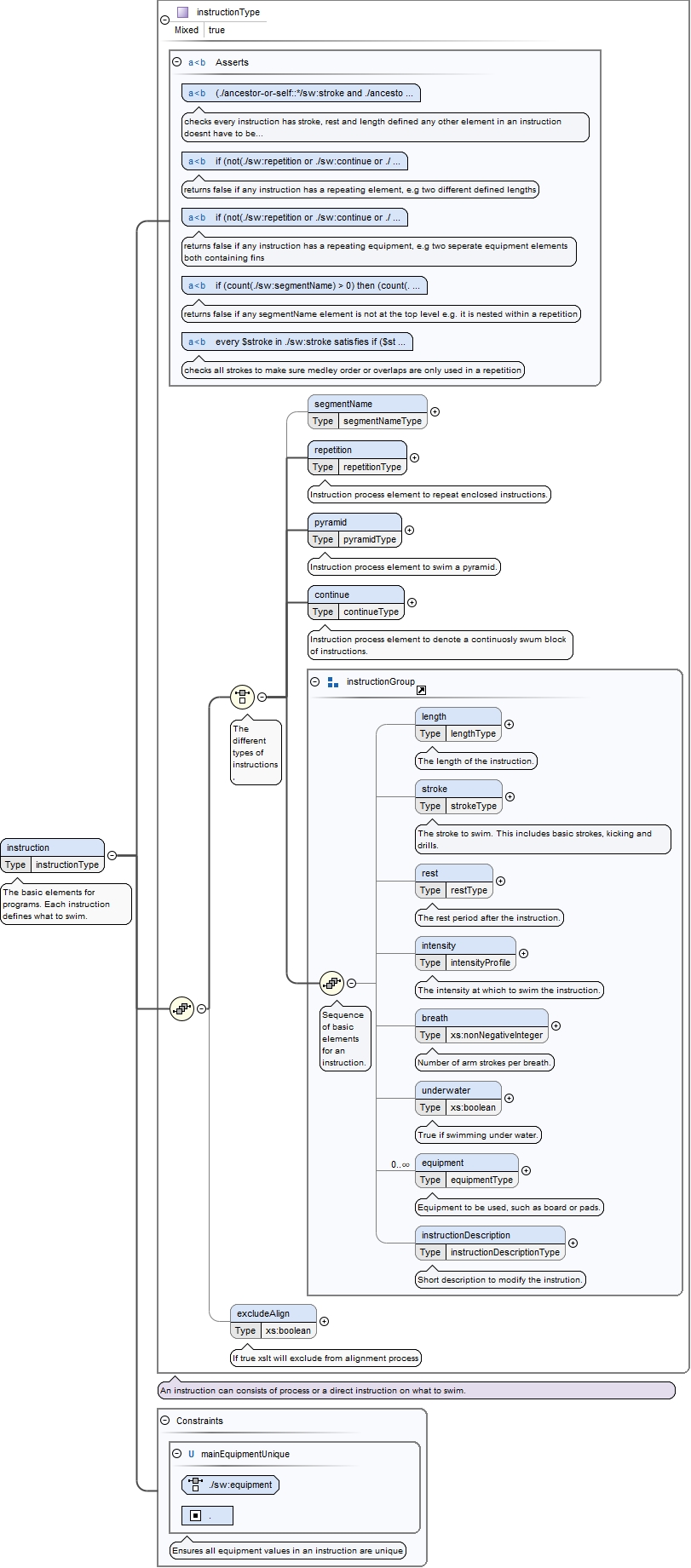

      <xs:element name="instruction" type="instructionType" minOccurs="1" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>The basic elements for programs. Each instruction defines what to swim.</xs:documentation>
        </xs:annotation>
        <xs:unique name="mainEquipmentUnique">
          <xs:annotation>
            <xs:documentation>Ensures all equipment values in an instruction are unique</xs:documentation>
          </xs:annotation>
          <xs:selector xpath="./sw:equipment"/>
          <xs:field xpath="."/>
        </xs:unique>
      </xs:element>
    </xs:sequence>
    <xs:assert test="                     every $inst in .//sw:instruction                         satisfies (                         ($inst/ancestor-or-self::*/sw:stroke                         and $inst/ancestor-or-self::*/sw:length)                         or $inst/sw:repetition                         or $inst/sw:continue                         or $inst/sw:pyramid                         or $inst/sw:segmentName)             ">
      <xs:annotation>
        <xs:documentation>checks every instruction has stroke, rest and length defined any other element in an instruction doesnt have to be defined</xs:documentation>
      </xs:annotation>
    </xs:assert>
  </xs:complexType>
</xs:element>
[ top ]
Element program / title
Namespace https://github.com/bartneck/swiML
Annotations

A short title of the program.
Diagram
DiagramswiML.tmp#titleString
Type titleString
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 60
Source

<xs:element name="title" type="titleString" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A short title of the program.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

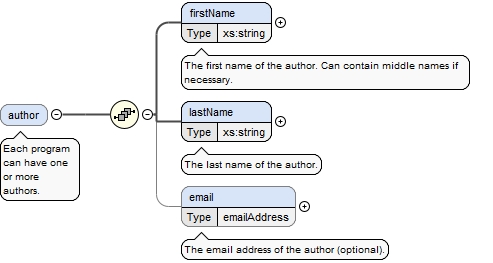

Element program / author
Namespace https://github.com/bartneck/swiML
Annotations

Each program can have one or more
authors.
Diagram
DiagramswiML.tmp#program_program_author_firstNameswiML.tmp#program_program_author_lastNameswiML.tmp#program_program_author_email
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children email, firstName, lastName
Instance

<author xmlns="https://github.com/bartneck/swiML">
  <firstName>{1,1}</firstName>
  <lastName>{1,1}</lastName>
  <email>{0,1}</email>
</author>
Source

<xs:element maxOccurs="unbounded" minOccurs="0" name="author">
  <xs:annotation>
    <xs:documentation>Each program can have one or more authors.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="firstName" minOccurs="1" type="xs:string">
        <xs:annotation>
          <xs:documentation>The first name of the author. Can contain middle names if necessary.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="lastName" minOccurs="1" type="xs:string">
        <xs:annotation>
          <xs:documentation>The last name of the author.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element minOccurs="0" name="email" type="emailAddress">
        <xs:annotation>
          <xs:documentation>The email address of the author (optional).</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]

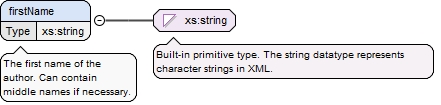

Element program / author / firstName
Namespace https://github.com/bartneck/swiML
Annotations

The first name of the author. Can contain
middle names if necessary.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 1
Source

<xs:element name="firstName" minOccurs="1" type="xs:string">
  <xs:annotation>
    <xs:documentation>The first name of the author. Can contain middle names if necessary.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element program / author / lastName
Namespace https://github.com/bartneck/swiML
Annotations

The last name of the
author.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 1
Source

<xs:element name="lastName" minOccurs="1" type="xs:string">
  <xs:annotation>
    <xs:documentation>The last name of the author.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element program / author / email
Namespace https://github.com/bartneck/swiML
Annotations

The email address of the author
(optional).
Diagram
DiagramswiML.tmp#emailAddress
Type emailAddress
Properties
content simple
minOccurs 0
Facets
pattern [^@]+@[^\.]+\..+
Source

<xs:element minOccurs="0" name="email" type="emailAddress">
  <xs:annotation>
    <xs:documentation>The email address of the author (optional).</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element program / programDescription
Namespace https://github.com/bartneck/swiML
Annotations

A short description for the program.
Diagram
DiagramswiML.tmp#descriptionString
Type descriptionString
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 400
Source

<xs:element name="programDescription" type="descriptionString" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>A short description for the program.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

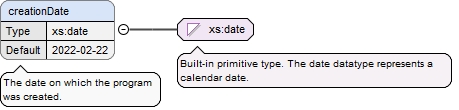

Element program / creationDate
Namespace https://github.com/bartneck/swiML
Annotations

The date on which the program was
created.
Diagram
Diagram
Type xs:date
Properties
content simple
minOccurs 0
maxOccurs 1
default 2022-02-22
Source

<xs:element minOccurs="0" name="creationDate" type="xs:date" maxOccurs="1" default="2022-02-22">
  <xs:annotation>
    <xs:documentation>The date on which the program was created.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element program / poolLength
Namespace https://github.com/bartneck/swiML
Annotations

The length of pool
Diagram
Diagram
Type xs:nonNegativeInteger
Properties
content simple
minOccurs 1
maxOccurs 1
default 25
Source

<xs:element name="poolLength" minOccurs="1" maxOccurs="1" type="xs:nonNegativeInteger" default="25">
  <xs:annotation>
    <xs:documentation>The length of pool</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element program / lengthUnit
Namespace https://github.com/bartneck/swiML
Annotations

The length of pool requires a measurement
unit.
Diagram
DiagramswiML.tmp#lengthUnits
Type lengthUnits
Properties
content simple
minOccurs 1
maxOccurs 1
default meters
Facets
enumeration meters
enumeration kilometers
enumeration miles
enumeration yards
Source

<xs:element name="lengthUnit" minOccurs="1" maxOccurs="1" type="lengthUnits" default="meters">
  <xs:annotation>
    <xs:documentation>The length of pool requires a measurement unit.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

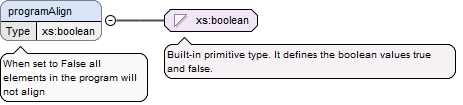

Element program / programAlign
Namespace https://github.com/bartneck/swiML
Annotations

When set to False all elements in the program will not align
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="programAlign" minOccurs="0" maxOccurs="1" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>When set to False all elements in the program will not align</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element program / numeralSystem
Namespace https://github.com/bartneck/swiML
Annotations

Can set to different numeral systems to display
Diagram
DiagramswiML.tmp#numeralSystems
Type numeralSystems
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration decimal
enumeration roman
Source

<xs:element name="numeralSystem" minOccurs="0" maxOccurs="1" type="numeralSystems">
  <xs:annotation>
    <xs:documentation>Can set to different numeral systems to display</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element program / hideIntro
Namespace https://github.com/bartneck/swiML
Annotations

True if intro should be hidden in
output.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="hideIntro" minOccurs="0" maxOccurs="1" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>True if intro should be hidden in output.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element program / layoutWidth
Namespace https://github.com/bartneck/swiML
Annotations

The width of the program on the HTML page. The unit is characters. 50ch are 11cm wide.
Diagram
Diagram
Type xs:nonNegativeInteger
Properties
content simple
minOccurs 0
maxOccurs 1
default 50
Source

<xs:element name="layoutWidth" minOccurs="0" maxOccurs="1" type="xs:nonNegativeInteger" default="50">
  <xs:annotation>
    <xs:documentation>The width of the program on the HTML page. The unit is characters. 50ch are 11cm wide.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

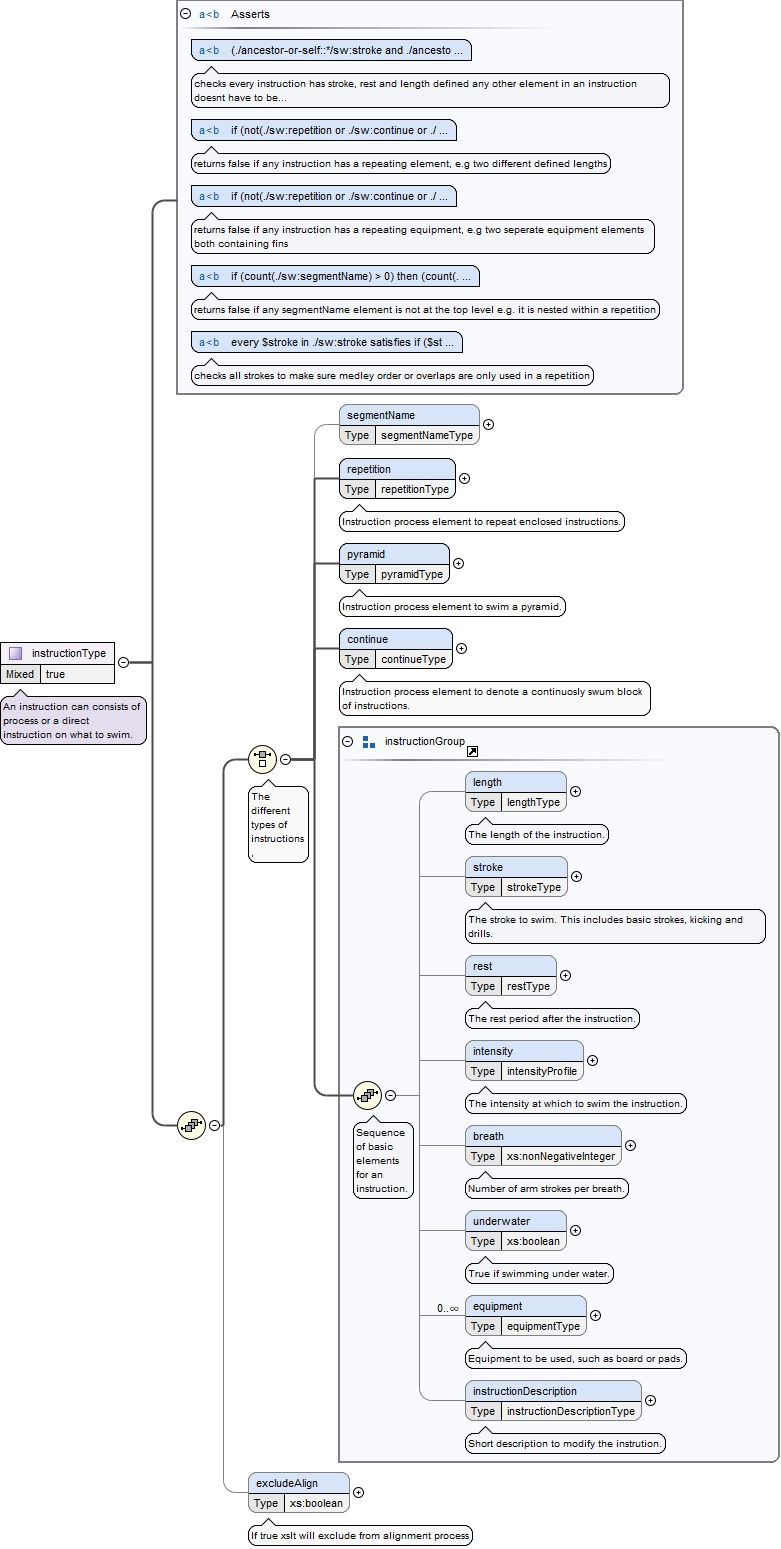

Element program / instruction
Namespace https://github.com/bartneck/swiML
Annotations

The basic elements for programs. Each instruction defines
what to swim.
Diagram
DiagramswiML.tmp#instructionType_segmentNameswiML.tmp#instructionType_repetitionswiML.tmp#instructionType_pyramidswiML.tmp#instructionType_continueswiML.tmp#instructionGroup_lengthswiML.tmp#instructionGroup_strokeswiML.tmp#instructionGroup_restswiML.tmp#instructionGroup_intensityswiML.tmp#instructionGroup_breathswiML.tmp#instructionGroup_underwaterswiML.tmp#instructionGroup_equipmentswiML.tmp#instructionGroup_instructionDescriptionswiML.tmp#instructionGroupswiML.tmp#instructionType_excludeAlignswiML.tmp#instructionType
Type instructionType
Properties
content complex
minOccurs 1
maxOccurs unbounded
mixed true
Model
Children breath, continue, equipment, excludeAlign, instructionDescription, intensity, length, pyramid, repetition, rest, segmentName, stroke, underwater
Instance

<instruction xmlns="https://github.com/bartneck/swiML">
  <segmentName>{0,1}</segmentName>
  <repetition>{1,1}</repetition>

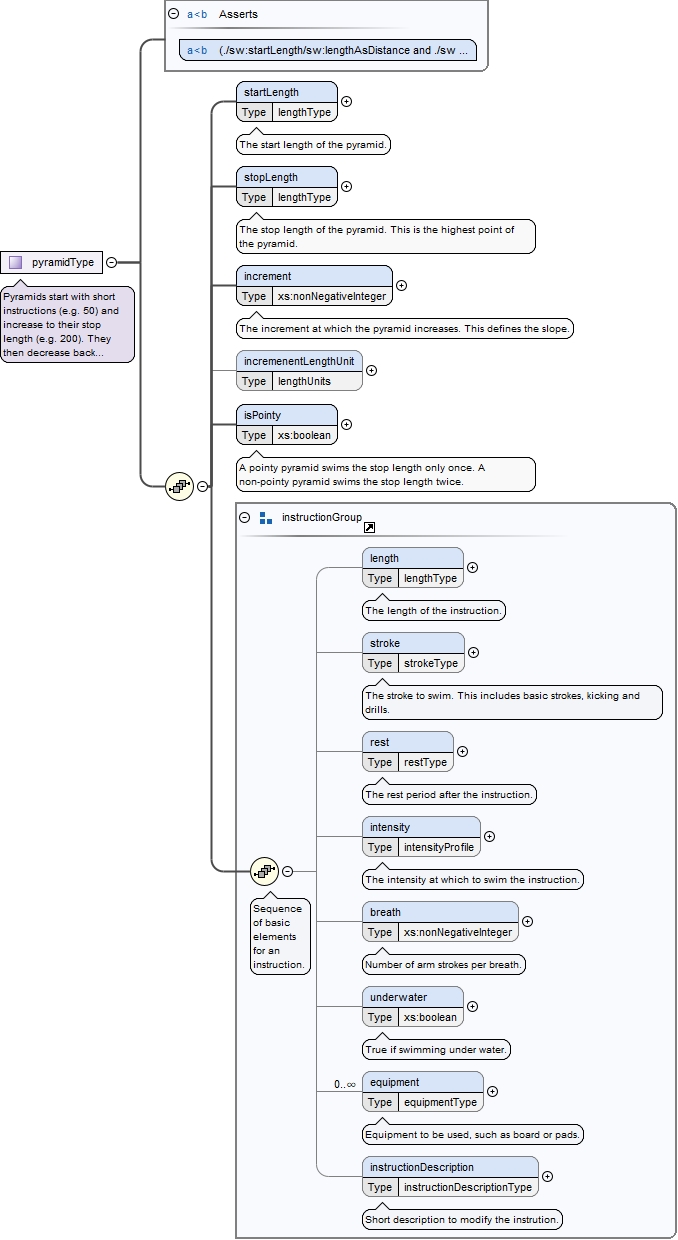

  <pyramid>{1,1}</pyramid>

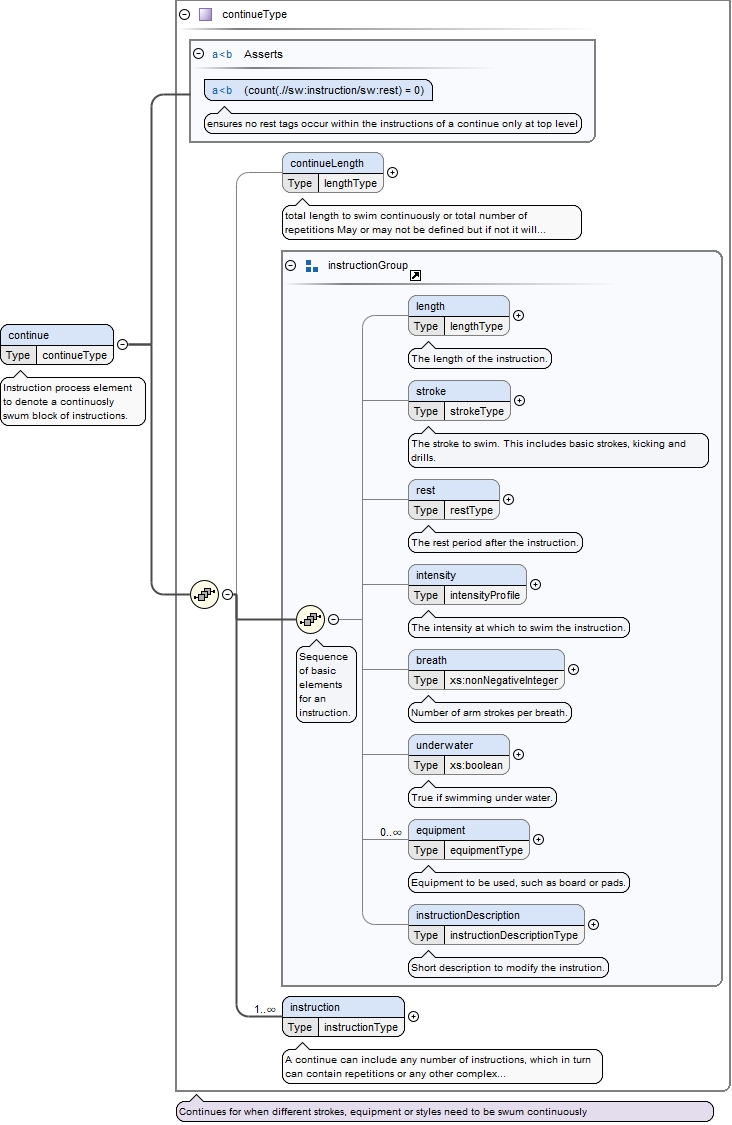

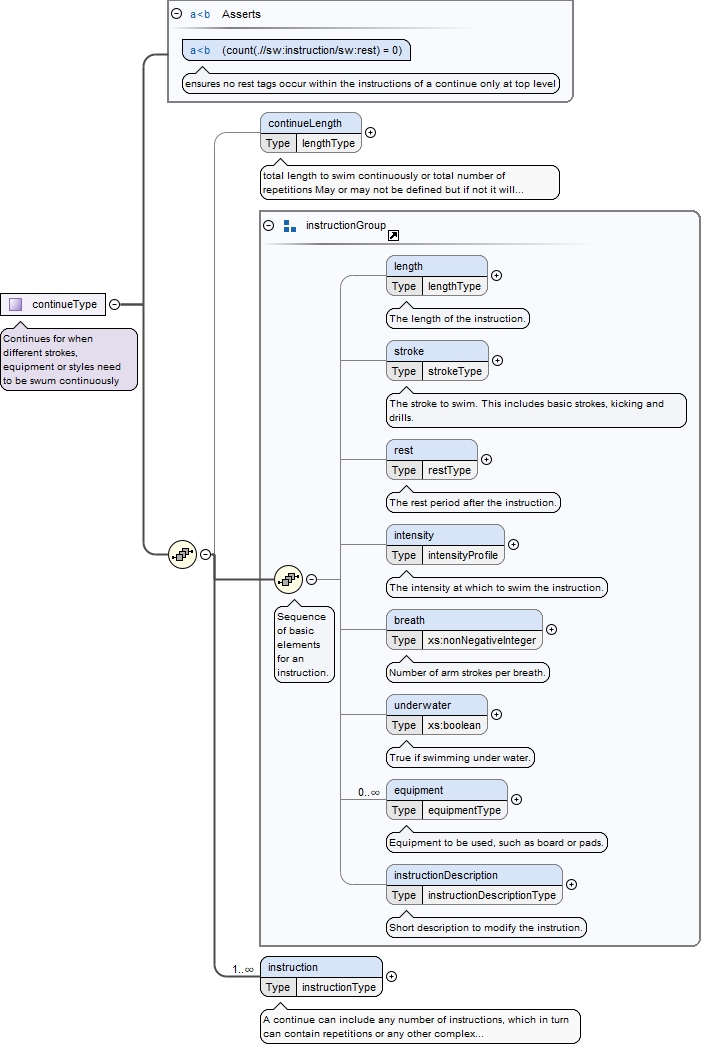

  <continue>{1,1}</continue>
  <length>{0,1}</length>
  <stroke>{0,1}</stroke>
  <rest>{0,1}</rest>
  <intensity>{0,1}</intensity>
  <breath>{0,1}</breath>
  <underwater>{0,1}</underwater>
  <equipment>{0,unbounded}</equipment>
  <instructionDescription>{0,1}</instructionDescription>
  <excludeAlign>{0,1}</excludeAlign>
</instruction>
Asserts
Test XPath default namespace Annotation
(./ancestor-or-self::*/sw:stroke and ./ancestor-or-self::*/sw:length) or ./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName
checks every instruction has stroke, rest and length defined
any other element in an instruction doesnt have to be defined
if (not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)) then ( every $element in ./* satisfies ( every $match in ./ancestor::*[name() = 'instruction' or name() = 'repetition' or name() = 'continue' or name() = 'pyramid'][not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)]/*[name() = 'length' or name() = 'stroke' or name() = 'rest' or name() = 'intensity' or name() = 'breath' or name() = 'underwater'] satisfies not(name($element) = name($match)) )) else (true())
returns false if any instruction has a repeating element, e.g two different defined lengths
if (not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)) then ( every $element in ./*[name() = 'equipment'] satisfies ( every $match in ./ancestor::*[name() = 'instruction' or name() = 'repetition' or name() = 'continue' or name() = 'pyramid'][not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)]/*[name() = 'equipment'] satisfies not($element/text() = $match/text()) )) else (true())
returns false if any instruction has a repeating equipment, e.g two seperate equipment elements both containing fins
if (count(./sw:segmentName) > 0) then (count(./sw:segmentName/../../ancestor::*) = 0) else (true())
returns false if any segmentName element is not at the top level e.g. it is nested within a repetition
every $stroke in ./sw:stroke satisfies if ($stroke/sw:standardStroke = 'individualMedleyOverlap' or $stroke/sw:standardStroke = 'individualMedleyOrder' or $stroke/sw:standardStroke = 'reverseIndividualMedleyOrder' or $stroke/sw:kicking/sw:standardKick = 'individualMedleyOverlap' or $stroke/sw:kicking/sw:standardKick = 'individualMedleyOrder' or $stroke/sw:kicking/sw:standardKick = 'reverseIndividualMedleyOrder' or$stroke/sw:drill/sw:drillStroke = 'individualMedleyOverlap' or $stroke/sw:drill/sw:drillStroke = 'individualMedleyOrder' or $stroke/sw:drill/sw:drillStroke = 'reverseIndividualMedleyOrder') then ($stroke/ancestor::*/sw:repetition) or ($stroke/ancestor::*/sw:continue/sw:continueLength) else ($stroke/parent::*)
checks all strokes to make sure medley order or overlaps are only
used in a repetition
Identity constraints
QName Type Refer Selector Field(s)
mainEquipmentUnique unique ./sw:equipment .
Source

<xs:element name="instruction" type="instructionType" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>The basic elements for programs. Each instruction defines what to swim.</xs:documentation>
  </xs:annotation>
  <xs:unique name="mainEquipmentUnique">
    <xs:annotation>
      <xs:documentation>Ensures all equipment values in an instruction are unique</xs:documentation>
    </xs:annotation>
    <xs:selector xpath="./sw:equipment"/>
    <xs:field xpath="."/>
  </xs:unique>
</xs:element>
[ top ]
Element instructionType / segmentName
Namespace https://github.com/bartneck/swiML
Diagram
DiagramswiML.tmp#segmentNameType
Type segmentNameType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 50
Source

<xs:element name="segmentName" minOccurs="0" maxOccurs="1" type="segmentNameType"/>
[ top ]

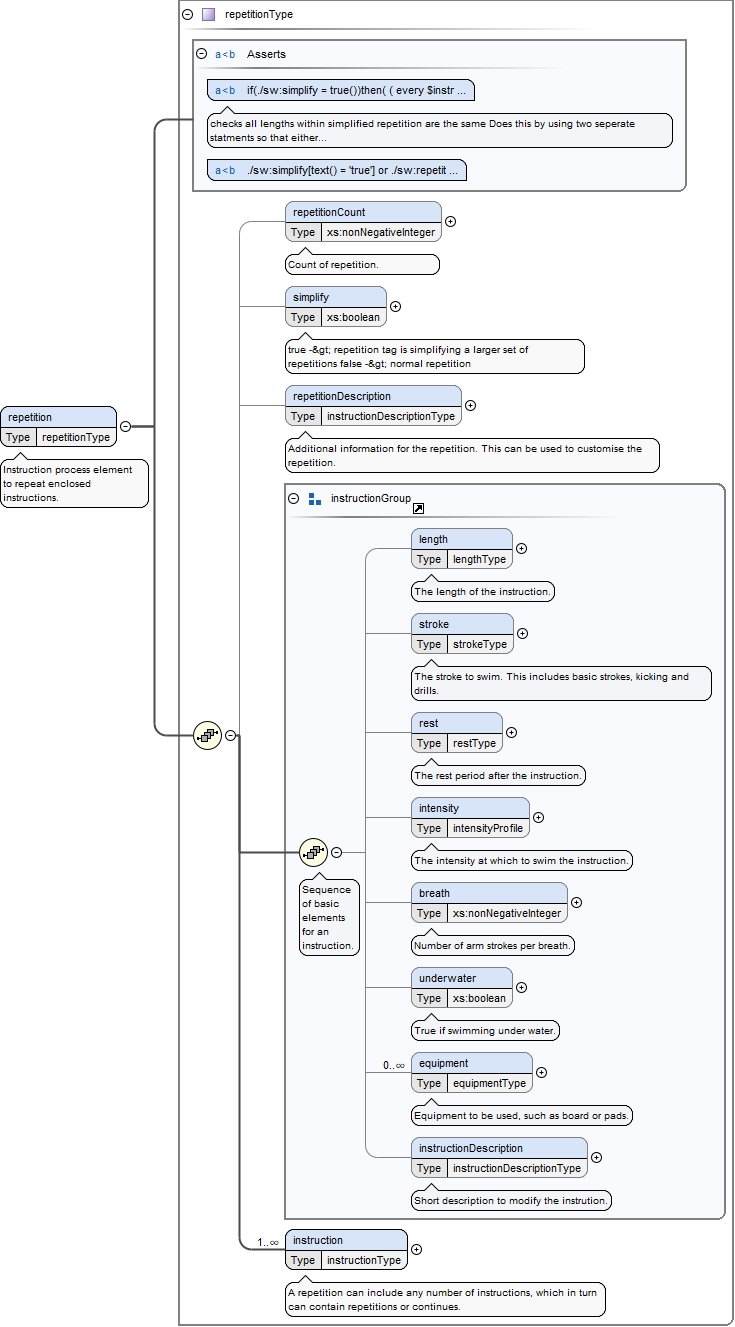

Element instructionType / repetition
Namespace https://github.com/bartneck/swiML
Annotations

Instruction process element to repeat enclosed
instructions.
Diagram
DiagramswiML.tmp#repetitionType_repetitionCountswiML.tmp#repetitionType_simplifyswiML.tmp#repetitionType_repetitionDescriptionswiML.tmp#instructionGroup_lengthswiML.tmp#instructionGroup_strokeswiML.tmp#instructionGroup_restswiML.tmp#instructionGroup_intensityswiML.tmp#instructionGroup_breathswiML.tmp#instructionGroup_underwaterswiML.tmp#instructionGroup_equipmentswiML.tmp#instructionGroup_instructionDescriptionswiML.tmp#instructionGroupswiML.tmp#repetitionType_instructionswiML.tmp#repetitionType
Type repetitionType
Properties
content complex
Model
Children breath, equipment, instruction, instructionDescription, intensity, length, repetitionCount, repetitionDescription, rest, simplify, stroke, underwater
Instance

<repetition xmlns="https://github.com/bartneck/swiML">
  <repetitionCount>{0,1}</repetitionCount>
  <simplify>{0,1}</simplify>
  <repetitionDescription>{0,1}</repetitionDescription>
  <length>{0,1}</length>
  <stroke>{0,1}</stroke>
  <rest>{0,1}</rest>
  <intensity>{0,1}</intensity>
  <breath>{0,1}</breath>
  <underwater>{0,1}</underwater>
  <equipment>{0,unbounded}</equipment>
  <instructionDescription>{0,1}</instructionDescription>
  <instruction>{1,unbounded}</instruction>
</repetition>
Asserts
Test XPath default namespace Annotation
if(./sw:simplify = true())then( ( every $instruction in ./sw:instruction[not(./sw:pyramid or ./sw:segmentName)] satisfies( (if($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)]) then( if(count($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)]) = 1) then( number( ($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsDistance ) ) else( sum( ($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsDistance ) ) ) else( 0 )+( if($instruction/descendant-or-self::sw:continueLength) then( number($instruction/descendant-or-self::sw:continueLength) ) else( 0 ) )) = number( ( ( (./descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsDistance ) | ( ./descendant-or-self::sw:continueLength ) )[1] ) ) )or( every $instruction in ./sw:instruction[not(./sw:pyramid or ./sw:segmentName)] satisfies( (if($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)]) then( if(count($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)]) = 1) then( number( ($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsLaps ) ) else( sum( ($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsLaps ) ) ) else( 0 )+( if($instruction/descendant-or-self::sw:continueLength) then( number( $instruction/descendant-or-self::sw:continueLength ) ) else( 0 ) )) = number( ( ( (./descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsLaps ) | ( ./descendant-or-self::sw:continueLength ) )[1] ) ) ) )else( true() )
checks all lengths within simplified repetition are the same
Does this by using two seperate statments so that either all lengthAsDistances are the same or all lengthAsLaps
checks that every instruction, repetition and continue has the same base length e.g. 100m , 4x100m and 50,50 swim as 100 ; these are all of length 100 so can be simplified in the same repetition
has to choose whether to use continueLength or add up all instructions within a continue
./sw:simplify[text() = 'true'] or ./sw:repetitionCount and not(./sw:simplify[text() = 'true'] and ./sw:repetitionCount)
Source

<xs:element name="repetition" type="repetitionType">
  <xs:annotation>
    <xs:documentation>Instruction process element to repeat enclosed instructions.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element repetitionType / repetitionCount
Namespace https://github.com/bartneck/swiML
Annotations

Count of repetition.
Diagram
Diagram
Type xs:nonNegativeInteger
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="repetitionCount" type="xs:nonNegativeInteger" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Count of repetition.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

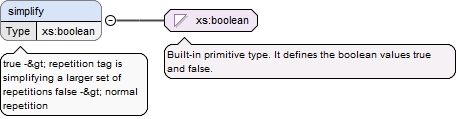

Element repetitionType / simplify
Namespace https://github.com/bartneck/swiML
Annotations

true -> repetition tag is simplifying a larger set of
repetitions false -> normal repetition
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="simplify" minOccurs="0" maxOccurs="1" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>true -> repetition tag is simplifying a larger set of repetitions false -> normal repetition</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element repetitionType / repetitionDescription
Namespace https://github.com/bartneck/swiML
Annotations

Additional information for the repetition. This can be used to
customise the repetition.
Diagram
DiagramswiML.tmp#instructionDescriptionType
Type instructionDescriptionType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 100
Source

<xs:element name="repetitionDescription" minOccurs="0" maxOccurs="1" type="instructionDescriptionType">
  <xs:annotation>
    <xs:documentation>Additional information for the repetition. This can be used to customise the repetition.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

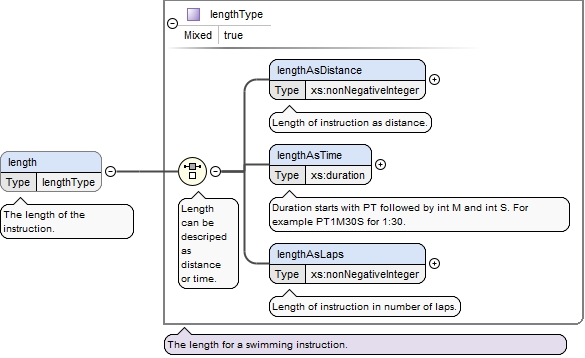

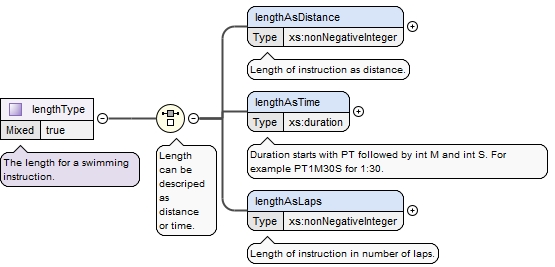

Element instructionGroup / length
Namespace https://github.com/bartneck/swiML
Annotations

The length of the instruction.
Diagram
DiagramswiML.tmp#lengthType_lengthAsDistanceswiML.tmp#lengthType_lengthAsTimeswiML.tmp#lengthType_lengthAsLapsswiML.tmp#lengthType
Type lengthType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Model
Children lengthAsDistance, lengthAsLaps, lengthAsTime
Instance

<length xmlns="https://github.com/bartneck/swiML">
  <lengthAsDistance>{1,1}</lengthAsDistance>
  <lengthAsTime>{1,1}</lengthAsTime>
  <lengthAsLaps>{1,1}</lengthAsLaps>
</length>
Source

<xs:element name="length" minOccurs="0" maxOccurs="1" type="lengthType">
  <xs:annotation>
    <xs:documentation>The length of the instruction.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element lengthType / lengthAsDistance
Namespace https://github.com/bartneck/swiML
Annotations

Length of instruction as distance.
Diagram
Diagram
Type xs:nonNegativeInteger
Properties
content simple
Source

<xs:element name="lengthAsDistance" type="xs:nonNegativeInteger">
  <xs:annotation>
    <xs:documentation>Length of instruction as distance.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

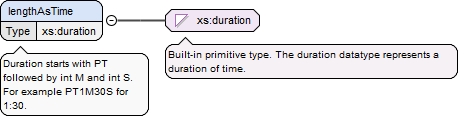

Element lengthType / lengthAsTime
Namespace https://github.com/bartneck/swiML
Annotations

Duration starts with PT followed by int M and int S. For
example PT1M30S for 1:30.
Diagram
Diagram
Type xs:duration
Properties
content simple
Source

<xs:element name="lengthAsTime" type="xs:duration">
  <xs:annotation>
    <xs:documentation>Duration starts with PT followed by int M and int S. For example PT1M30S for 1:30.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element lengthType / lengthAsLaps
Namespace https://github.com/bartneck/swiML
Annotations

Length of instruction in number of laps.
Diagram
Diagram
Type xs:nonNegativeInteger
Properties
content simple
Source

<xs:element name="lengthAsLaps" type="xs:nonNegativeInteger">
  <xs:annotation>
    <xs:documentation>Length of instruction in number of laps.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

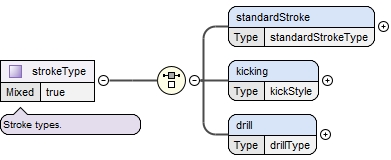

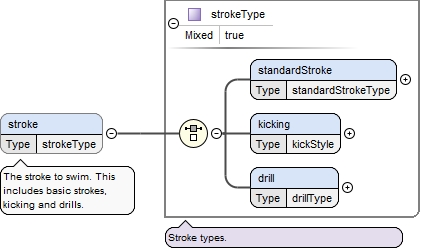

Element instructionGroup / stroke
Namespace https://github.com/bartneck/swiML
Annotations

The stroke to swim. This includes basic strokes, kicking and
drills.
Diagram
DiagramswiML.tmp#strokeType_standardStrokeswiML.tmp#strokeType_kickingswiML.tmp#strokeType_drillswiML.tmp#strokeType
Type strokeType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Model
Children drill, kicking, standardStroke
Instance

<stroke xmlns="https://github.com/bartneck/swiML">
  <standardStroke>{1,1}</standardStroke>
  <kicking>{1,1}</kicking>
  <drill>{1,1}</drill>
</stroke>
Source

<xs:element name="stroke" minOccurs="0" maxOccurs="1" type="strokeType">
  <xs:annotation>
    <xs:documentation>The stroke to swim. This includes basic strokes, kicking and drills.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element strokeType / standardStroke
Namespace https://github.com/bartneck/swiML
Diagram
DiagramswiML.tmp#standardStrokeType
Type standardStrokeType
Properties
content simple
Facets
enumeration butterfly
enumeration backstroke
enumeration breaststroke
enumeration freestyle
enumeration individualMedley
enumeration reverseIndividualMedley
enumeration individualMedleyOverlap
enumeration individualMedleyOrder
enumeration reverseIndividualMedleyOrder
enumeration any
enumeration nr1
enumeration nr2
enumeration nr3
enumeration nr4
enumeration notButterfly
enumeration notBackstroke
enumeration notBreaststroke
enumeration notFreestyle
Source

<xs:element name="standardStroke" type="standardStrokeType"/>
[ top ]

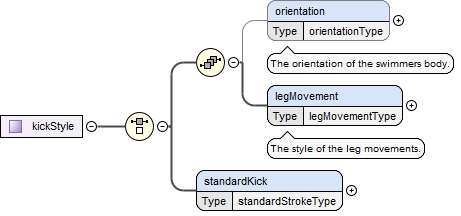

Element strokeType / kicking
Namespace https://github.com/bartneck/swiML
Diagram
DiagramswiML.tmp#kickStyle_orientationswiML.tmp#kickStyle_legMovementswiML.tmp#kickStyle_standardKickswiML.tmp#kickStyle
Type kickStyle
Properties
content complex
Model
Children legMovement, orientation, standardKick
Instance

<kicking xmlns="https://github.com/bartneck/swiML">
  <orientation>{0,1}</orientation>
  <legMovement>{1,1}</legMovement>
  <standardKick>{1,1}</standardKick>
</kicking>
Source

<xs:element name="kicking" type="kickStyle"/>
[ top ]
Element kickStyle / orientation
Namespace https://github.com/bartneck/swiML
Annotations

The orientation of the swimmers body.
Diagram
DiagramswiML.tmp#orientationType
Type orientationType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration front
enumeration back
enumeration left
enumeration right
enumeration side
enumeration vertical
enumeration waka
Source

<xs:element name="orientation" type="orientationType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The orientation of the swimmers body.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element kickStyle / legMovement
Namespace https://github.com/bartneck/swiML
Annotations

The style of the leg movements.
Diagram
DiagramswiML.tmp#legMovementType
Type legMovementType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration flutter
enumeration dolphin
enumeration scissor
Source

<xs:element name="legMovement" type="legMovementType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The style of the leg movements.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element kickStyle / standardKick
Namespace https://github.com/bartneck/swiML
Diagram
DiagramswiML.tmp#standardStrokeType
Type standardStrokeType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration butterfly
enumeration backstroke
enumeration breaststroke
enumeration freestyle
enumeration individualMedley
enumeration reverseIndividualMedley
enumeration individualMedleyOverlap
enumeration individualMedleyOrder
enumeration reverseIndividualMedleyOrder
enumeration any
enumeration nr1
enumeration nr2
enumeration nr3
enumeration nr4
enumeration notButterfly
enumeration notBackstroke
enumeration notBreaststroke
enumeration notFreestyle
Source

<xs:element name="standardKick" minOccurs="1" maxOccurs="1" type="standardStrokeType"/>
[ top ]

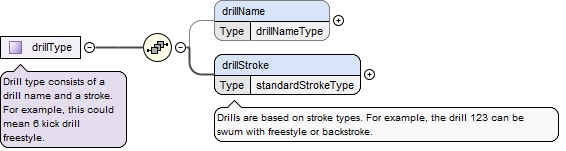

Element strokeType / drill
Namespace https://github.com/bartneck/swiML
Diagram
DiagramswiML.tmp#drillType_drillNameswiML.tmp#drillType_drillStrokeswiML.tmp#drillType
Type drillType
Properties
content complex
Model
Children drillName, drillStroke
Instance

<drill xmlns="https://github.com/bartneck/swiML">
  <drillName>{0,1}</drillName>
  <drillStroke>{1,1}</drillStroke>
</drill>
Source

<xs:element name="drill" type="drillType"/>
[ top ]
Element drillType / drillName
Namespace https://github.com/bartneck/swiML
Diagram
DiagramswiML.tmp#drillNameType
Type drillNameType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration 6KickDrill
enumeration 8KickDrill
enumeration 10KickDrill
enumeration 12KickDrill
enumeration fingerTrails
enumeration 123
enumeration bigDog
enumeration scull
enumeration singleArm
enumeration any
enumeration technic
enumeration dogPaddle
enumeration tarzan
enumeration fist
enumeration 2Kick1Pull
enumeration 3Kick1Pull
enumeration 2Pull1Kick
enumeration 3Pull1Kick
enumeration 3Right3Left
enumeration 2Right2Left
enumeration other
Source

<xs:element name="drillName" minOccurs="0" maxOccurs="1" type="drillNameType"/>
[ top ]

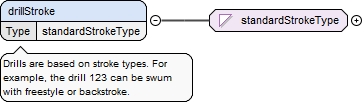

Element drillType / drillStroke
Namespace https://github.com/bartneck/swiML
Annotations

Drills are based on stroke types. For example, the drill 123
can be swum with freestyle or backstroke.
Diagram
DiagramswiML.tmp#standardStrokeType
Type standardStrokeType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration butterfly
enumeration backstroke
enumeration breaststroke
enumeration freestyle
enumeration individualMedley
enumeration reverseIndividualMedley
enumeration individualMedleyOverlap
enumeration individualMedleyOrder
enumeration reverseIndividualMedleyOrder
enumeration any
enumeration nr1
enumeration nr2
enumeration nr3
enumeration nr4
enumeration notButterfly
enumeration notBackstroke
enumeration notBreaststroke
enumeration notFreestyle
Source

<xs:element name="drillStroke" type="standardStrokeType" maxOccurs="1" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Drills are based on stroke types. For example, the drill 123 can be swum with freestyle or backstroke.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

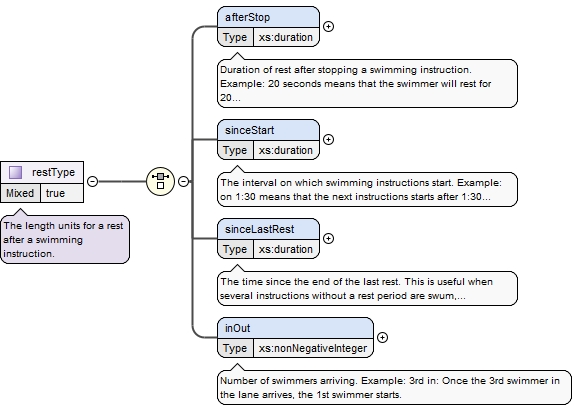

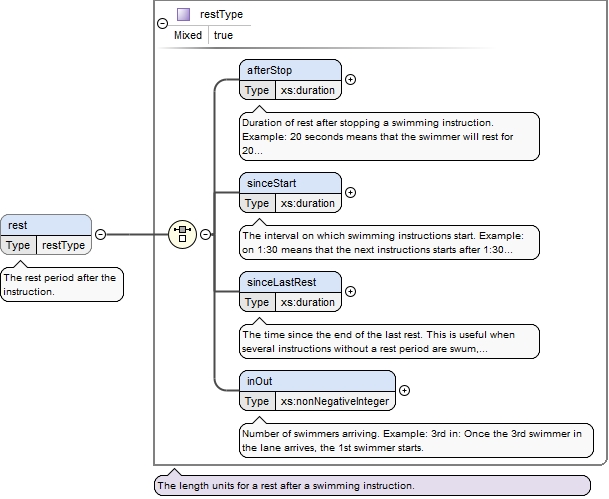

Element instructionGroup / rest
Namespace https://github.com/bartneck/swiML
Annotations

The rest period after the instruction.
Diagram
DiagramswiML.tmp#restType_afterStopswiML.tmp#restType_sinceStartswiML.tmp#restType_sinceLastRestswiML.tmp#restType_inOutswiML.tmp#restType
Type restType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Model
Children afterStop, inOut, sinceLastRest, sinceStart
Instance

<rest xmlns="https://github.com/bartneck/swiML">
  <afterStop>{1,1}</afterStop>
  <sinceStart>{1,1}</sinceStart>
  <sinceLastRest>{1,1}</sinceLastRest>
  <inOut>{1,1}</inOut>
</rest>
Source

<xs:element name="rest" minOccurs="0" maxOccurs="1" type="restType">
  <xs:annotation>
    <xs:documentation>The rest period after the instruction.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

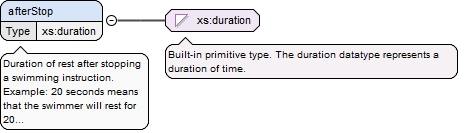

Element restType / afterStop
Namespace https://github.com/bartneck/swiML
Annotations

Duration of rest after stopping a swimming instruction.
Example: 20 seconds means that the swimmer will rest for 20 seconds after
stopping the current instructions.
Diagram
Diagram
Type xs:duration
Properties
content simple
Source

<xs:element name="afterStop" type="xs:duration">
  <xs:annotation>
    <xs:documentation>Duration of rest after stopping a swimming instruction. Example: 20 seconds means that the swimmer will rest for 20 seconds after stopping the current instructions.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

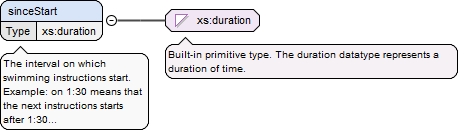

Element restType / sinceStart
Namespace https://github.com/bartneck/swiML
Annotations

The interval on which swimming instructions start. Example: on
1:30 means that the next instructions starts after 1:30 from starting the
current instruction.
Diagram
Diagram
Type xs:duration
Properties
content simple
Source

<xs:element name="sinceStart" type="xs:duration">
  <xs:annotation>
    <xs:documentation>The interval on which swimming instructions start. Example: on 1:30 means that the next instructions starts after 1:30 from starting the current instruction.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

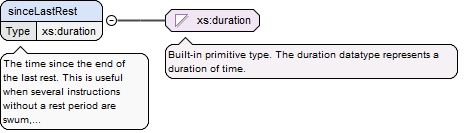

Element restType / sinceLastRest
Namespace https://github.com/bartneck/swiML
Annotations

The time since the end of the last rest. This is useful when
several instructions without a rest period are swum, followed by a since
start type rest.
Diagram
Diagram
Type xs:duration
Properties
content simple
Source

<xs:element name="sinceLastRest" type="xs:duration">
  <xs:annotation>
    <xs:documentation>The time since the end of the last rest. This is useful when several instructions without a rest period are swum, followed by a since start type rest.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

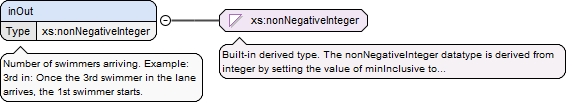

Element restType / inOut
Namespace https://github.com/bartneck/swiML
Annotations

Number of swimmers arriving. Example: 3rd in: Once the 3rd
swimmer in the lane arrives, the 1st swimmer starts.
Diagram
Diagram
Type xs:nonNegativeInteger
Properties
content simple
Source

<xs:element name="inOut" type="xs:nonNegativeInteger">
  <xs:annotation>
    <xs:documentation>Number of swimmers arriving. Example: 3rd in: Once the 3rd swimmer in the lane arrives, the 1st swimmer starts.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

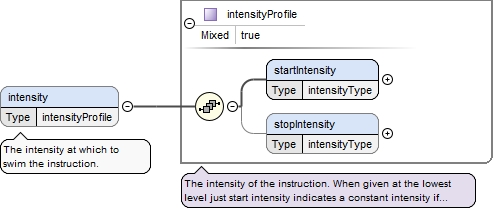

Element instructionGroup / intensity
Namespace https://github.com/bartneck/swiML
Annotations

The intensity at which to swim the
instruction.
Diagram
DiagramswiML.tmp#intensityProfile_startIntensityswiML.tmp#intensityProfile_stopIntensityswiML.tmp#intensityProfile
Type intensityProfile
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Model
Children startIntensity, stopIntensity
Instance

<intensity xmlns="https://github.com/bartneck/swiML">
  <startIntensity>{1,1}</startIntensity>
  <stopIntensity>{0,1}</stopIntensity>
</intensity>
Source

<xs:element name="intensity" minOccurs="0" maxOccurs="1" type="intensityProfile">
  <xs:annotation>
    <xs:documentation>The intensity at which to swim the instruction.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

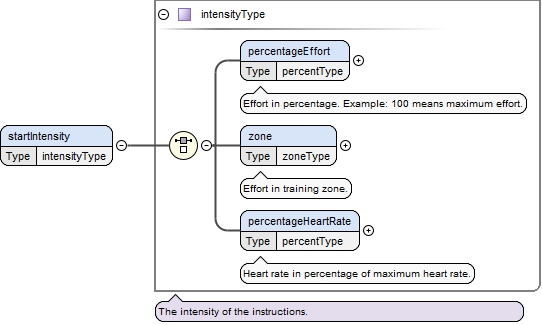

Element intensityProfile / startIntensity
Namespace https://github.com/bartneck/swiML
Diagram
DiagramswiML.tmp#intensityType_percentageEffortswiML.tmp#intensityType_zoneswiML.tmp#intensityType_percentageHeartRateswiML.tmp#intensityType
Type intensityType
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children percentageEffort, percentageHeartRate, zone
Instance

<startIntensity xmlns="https://github.com/bartneck/swiML">
  <percentageEffort>{1,1}</percentageEffort>
  <zone>{1,1}</zone>
  <percentageHeartRate>{1,1}</percentageHeartRate>
</startIntensity>
Source

<xs:element name="startIntensity" minOccurs="1" maxOccurs="1" type="intensityType"/>
[ top ]
Element intensityType / percentageEffort
Namespace https://github.com/bartneck/swiML
Annotations

Effort in percentage. Example: 100 means maximum
effort.
Diagram
DiagramswiML.tmp#percentType
Type percentType
Properties
content simple
Facets
maxInclusive 100
minInclusive 0
Source

<xs:element name="percentageEffort" type="percentType">
  <xs:annotation>
    <xs:documentation>Effort in percentage. Example: 100 means maximum effort.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element intensityType / zone
Namespace https://github.com/bartneck/swiML
Annotations

Effort in training zone.
Diagram
DiagramswiML.tmp#zoneType
Type zoneType
Properties
content simple
Facets
enumeration easy
enumeration threshold
enumeration endurance
enumeration racePace
enumeration max
Source

<xs:element name="zone" type="zoneType">
  <xs:annotation>
    <xs:documentation>Effort in training zone.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element intensityType / percentageHeartRate
Namespace https://github.com/bartneck/swiML
Annotations

Heart rate in percentage of maximum heart
rate.
Diagram
DiagramswiML.tmp#percentType
Type percentType
Properties
content simple
Facets
maxInclusive 100
minInclusive 0
Source

<xs:element name="percentageHeartRate" type="percentType">
  <xs:annotation>
    <xs:documentation>Heart rate in percentage of maximum heart rate.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

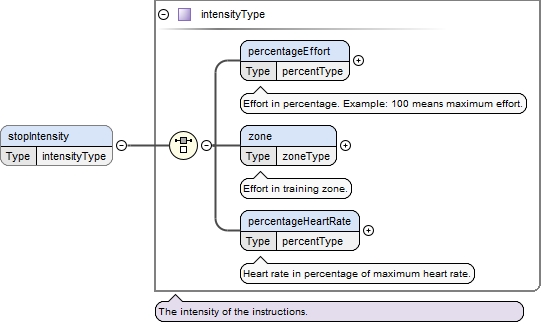

Element intensityProfile / stopIntensity
Namespace https://github.com/bartneck/swiML
Diagram
DiagramswiML.tmp#intensityType_percentageEffortswiML.tmp#intensityType_zoneswiML.tmp#intensityType_percentageHeartRateswiML.tmp#intensityType
Type intensityType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children percentageEffort, percentageHeartRate, zone
Instance

<stopIntensity xmlns="https://github.com/bartneck/swiML">
  <percentageEffort>{1,1}</percentageEffort>
  <zone>{1,1}</zone>
  <percentageHeartRate>{1,1}</percentageHeartRate>
</stopIntensity>
Source

<xs:element name="stopIntensity" minOccurs="0" maxOccurs="1" type="intensityType"/>
[ top ]
Element instructionGroup / breath
Namespace https://github.com/bartneck/swiML
Annotations

Number of arm strokes per breath.
Diagram
Diagram
Type xs:nonNegativeInteger
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="breath" minOccurs="0" maxOccurs="1" type="xs:nonNegativeInteger">
  <xs:annotation>
    <xs:documentation>Number of arm strokes per breath.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element instructionGroup / underwater
Namespace https://github.com/bartneck/swiML
Annotations

True if swimming under water.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="underwater" minOccurs="0" maxOccurs="1" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>True if swimming under water.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element instructionGroup / equipment
Namespace https://github.com/bartneck/swiML
Annotations

Equipment to be used, such as board or
pads.
Diagram
DiagramswiML.tmp#equipmentType
Type equipmentType
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
enumeration board
enumeration pads
enumeration pullBuoy
enumeration fins
enumeration snorkle
enumeration chute
enumeration stretchCord
Source

<xs:element name="equipment" minOccurs="0" maxOccurs="unbounded" type="equipmentType">
  <xs:annotation>
    <xs:documentation>Equipment to be used, such as board or pads.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element instructionGroup / instructionDescription
Namespace https://github.com/bartneck/swiML
Annotations

Short description to modify the instrution.
Diagram
DiagramswiML.tmp#instructionDescriptionType
Type instructionDescriptionType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 100
Source

<xs:element name="instructionDescription" type="instructionDescriptionType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Short description to modify the instrution.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element repetitionType / instruction
Namespace https://github.com/bartneck/swiML
Annotations

A repetition can include any number of instructions, which in
turn can contain repetitions or continues.
Diagram
DiagramswiML.tmp#instructionType_segmentNameswiML.tmp#instructionType_repetitionswiML.tmp#instructionType_pyramidswiML.tmp#instructionType_continueswiML.tmp#instructionGroup_lengthswiML.tmp#instructionGroup_strokeswiML.tmp#instructionGroup_restswiML.tmp#instructionGroup_intensityswiML.tmp#instructionGroup_breathswiML.tmp#instructionGroup_underwaterswiML.tmp#instructionGroup_equipmentswiML.tmp#instructionGroup_instructionDescriptionswiML.tmp#instructionGroupswiML.tmp#instructionType_excludeAlignswiML.tmp#instructionType
Type instructionType
Properties
content complex
minOccurs 1
maxOccurs unbounded
mixed true
Model
Children breath, continue, equipment, excludeAlign, instructionDescription, intensity, length, pyramid, repetition, rest, segmentName, stroke, underwater
Instance

<instruction xmlns="https://github.com/bartneck/swiML">
  <segmentName>{0,1}</segmentName>
  <repetition>{1,1}</repetition>
  <pyramid>{1,1}</pyramid>
  <continue>{1,1}</continue>
  <length>{0,1}</length>
  <stroke>{0,1}</stroke>
  <rest>{0,1}</rest>
  <intensity>{0,1}</intensity>
  <breath>{0,1}</breath>
  <underwater>{0,1}</underwater>
  <equipment>{0,unbounded}</equipment>
  <instructionDescription>{0,1}</instructionDescription>
  <excludeAlign>{0,1}</excludeAlign>
</instruction>
Asserts
Test XPath default namespace Annotation
(./ancestor-or-self::*/sw:stroke and ./ancestor-or-self::*/sw:length) or ./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName
checks every instruction has stroke, rest and length defined
any other element in an instruction doesnt have to be defined
if (not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)) then ( every $element in ./* satisfies ( every $match in ./ancestor::*[name() = 'instruction' or name() = 'repetition' or name() = 'continue' or name() = 'pyramid'][not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)]/*[name() = 'length' or name() = 'stroke' or name() = 'rest' or name() = 'intensity' or name() = 'breath' or name() = 'underwater'] satisfies not(name($element) = name($match)) )) else (true())
returns false if any instruction has a repeating element, e.g two different defined lengths
if (not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)) then ( every $element in ./*[name() = 'equipment'] satisfies ( every $match in ./ancestor::*[name() = 'instruction' or name() = 'repetition' or name() = 'continue' or name() = 'pyramid'][not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)]/*[name() = 'equipment'] satisfies not($element/text() = $match/text()) )) else (true())
returns false if any instruction has a repeating equipment, e.g two seperate equipment elements both containing fins
if (count(./sw:segmentName) > 0) then (count(./sw:segmentName/../../ancestor::*) = 0) else (true())
returns false if any segmentName element is not at the top level e.g. it is nested within a repetition
every $stroke in ./sw:stroke satisfies if ($stroke/sw:standardStroke = 'individualMedleyOverlap' or $stroke/sw:standardStroke = 'individualMedleyOrder' or $stroke/sw:standardStroke = 'reverseIndividualMedleyOrder' or $stroke/sw:kicking/sw:standardKick = 'individualMedleyOverlap' or $stroke/sw:kicking/sw:standardKick = 'individualMedleyOrder' or $stroke/sw:kicking/sw:standardKick = 'reverseIndividualMedleyOrder' or$stroke/sw:drill/sw:drillStroke = 'individualMedleyOverlap' or $stroke/sw:drill/sw:drillStroke = 'individualMedleyOrder' or $stroke/sw:drill/sw:drillStroke = 'reverseIndividualMedleyOrder') then ($stroke/ancestor::*/sw:repetition) or ($stroke/ancestor::*/sw:continue/sw:continueLength) else ($stroke/parent::*)
checks all strokes to make sure medley order or overlaps are only
used in a repetition
Identity constraints
QName Type Refer Selector Field(s)
repEquipmentUnique unique ./sw:equipment .
Source

<xs:element name="instruction" minOccurs="1" maxOccurs="unbounded" type="instructionType">
  <xs:annotation>
    <xs:documentation>A repetition can include any number of instructions, which in turn can contain repetitions or continues.</xs:documentation>
  </xs:annotation>
  <xs:unique name="repEquipmentUnique">
    <xs:annotation>
      <xs:documentation>Ensures all equipment values in an instruction are unique</xs:documentation>
    </xs:annotation>
    <xs:selector xpath="./sw:equipment"/>
    <xs:field xpath="."/>
  </xs:unique>
</xs:element>
[ top ]
Element instructionType / pyramid
Namespace https://github.com/bartneck/swiML
Annotations

Instruction process element to swim a
pyramid.
Diagram
DiagramswiML.tmp#pyramidType_startLengthswiML.tmp#pyramidType_stopLengthswiML.tmp#pyramidType_incrementswiML.tmp#pyramidType_incremenentLengthUnitswiML.tmp#pyramidType_isPointyswiML.tmp#instructionGroup_lengthswiML.tmp#instructionGroup_strokeswiML.tmp#instructionGroup_restswiML.tmp#instructionGroup_intensityswiML.tmp#instructionGroup_breathswiML.tmp#instructionGroup_underwaterswiML.tmp#instructionGroup_equipmentswiML.tmp#instructionGroup_instructionDescriptionswiML.tmp#instructionGroupswiML.tmp#pyramidType
Type pyramidType
Properties
content complex
Model
Children breath, equipment, incremenentLengthUnit, increment, instructionDescription, intensity, isPointy, length, rest, startLength, stopLength, stroke, underwater
Instance

<pyramid xmlns="https://github.com/bartneck/swiML">
  <startLength>{1,1}</startLength>
  <stopLength>{1,1}</stopLength>
  <increment>{1,1}</increment>
  <incremenentLengthUnit>{0,1}</incremenentLengthUnit>
  <isPointy>{1,1}</isPointy>
  <length>{0,1}</length>
  <stroke>{0,1}</stroke>
  <rest>{0,1}</rest>
  <intensity>{0,1}</intensity>
  <breath>{0,1}</breath>
  <underwater>{0,1}</underwater>
  <equipment>{0,unbounded}</equipment>
  <instructionDescription>{0,1}</instructionDescription>
</pyramid>
Asserts
Test XPath default namespace Annotation
(./sw:startLength/sw:lengthAsDistance and ./sw:stopLength/sw:lengthAsDistance) or (./sw:startLength/sw:lengthAsLaps and ./sw:stopLength/sw:lengthAsLaps) or (./sw:startLength/sw:lengthAsTime and ./sw:stopLength/sw:lengthAsTime)
Source

<xs:element name="pyramid" type="pyramidType">
  <xs:annotation>
    <xs:documentation>Instruction process element to swim a pyramid.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element pyramidType / startLength
Namespace https://github.com/bartneck/swiML
Annotations

The start length of the pyramid.
Diagram
DiagramswiML.tmp#lengthType_lengthAsDistanceswiML.tmp#lengthType_lengthAsTimeswiML.tmp#lengthType_lengthAsLapsswiML.tmp#lengthType
Type lengthType
Properties
content complex
minOccurs 1
maxOccurs 1
mixed true
Model
Children lengthAsDistance, lengthAsLaps, lengthAsTime
Instance

<startLength xmlns="https://github.com/bartneck/swiML">
  <lengthAsDistance>{1,1}</lengthAsDistance>
  <lengthAsTime>{1,1}</lengthAsTime>
  <lengthAsLaps>{1,1}</lengthAsLaps>
</startLength>
Source

<xs:element name="startLength" minOccurs="1" maxOccurs="1" type="lengthType">
  <xs:annotation>
    <xs:documentation>The start length of the pyramid.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

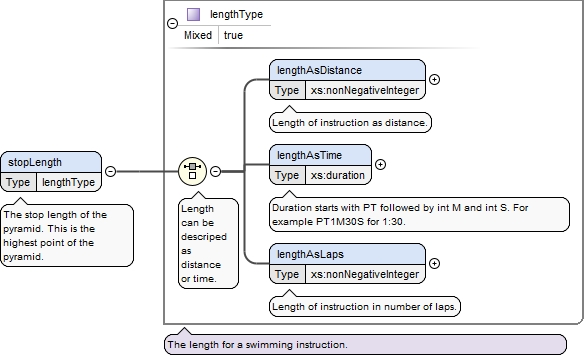

Element pyramidType / stopLength
Namespace https://github.com/bartneck/swiML
Annotations

The stop length of the pyramid. This is the highest point of
the pyramid.
Diagram
DiagramswiML.tmp#lengthType_lengthAsDistanceswiML.tmp#lengthType_lengthAsTimeswiML.tmp#lengthType_lengthAsLapsswiML.tmp#lengthType
Type lengthType
Properties
content complex
minOccurs 1
maxOccurs 1
mixed true
Model
Children lengthAsDistance, lengthAsLaps, lengthAsTime
Instance

<stopLength xmlns="https://github.com/bartneck/swiML">
  <lengthAsDistance>{1,1}</lengthAsDistance>
  <lengthAsTime>{1,1}</lengthAsTime>
  <lengthAsLaps>{1,1}</lengthAsLaps>
</stopLength>
Source

<xs:element name="stopLength" minOccurs="1" maxOccurs="1" type="lengthType">
  <xs:annotation>
    <xs:documentation>The stop length of the pyramid. This is the highest point of the pyramid.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element pyramidType / increment
Namespace https://github.com/bartneck/swiML
Annotations

The increment at which the pyramid increases. This defines the
slope.
Diagram
Diagram
Type xs:nonNegativeInteger
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="increment" minOccurs="1" maxOccurs="1" type="xs:nonNegativeInteger">
  <xs:annotation>
    <xs:documentation>The increment at which the pyramid increases. This defines the slope.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element pyramidType / incremenentLengthUnit
Namespace https://github.com/bartneck/swiML
Diagram
DiagramswiML.tmp#lengthUnits
Type lengthUnits
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration meters
enumeration kilometers
enumeration miles
enumeration yards
Source

<xs:element name="incremenentLengthUnit" type="lengthUnits" minOccurs="0" maxOccurs="1"/>
[ top ]

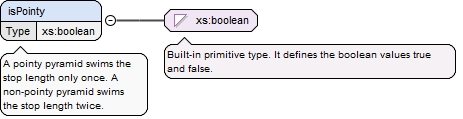

Element pyramidType / isPointy
Namespace https://github.com/bartneck/swiML
Annotations

A pointy pyramid swims the stop length only once. A non-pointy
pyramid swims the stop length twice.
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="isPointy" minOccurs="1" maxOccurs="1" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>A pointy pyramid swims the stop length only once. A non-pointy pyramid swims the stop length twice.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element instructionType / continue
Namespace https://github.com/bartneck/swiML
Annotations

Instruction process element to denote a continuosly swum block
of instructions.
Diagram
DiagramswiML.tmp#continueType_continueLengthswiML.tmp#instructionGroup_lengthswiML.tmp#instructionGroup_strokeswiML.tmp#instructionGroup_restswiML.tmp#instructionGroup_intensityswiML.tmp#instructionGroup_breathswiML.tmp#instructionGroup_underwaterswiML.tmp#instructionGroup_equipmentswiML.tmp#instructionGroup_instructionDescriptionswiML.tmp#instructionGroupswiML.tmp#continueType_instructionswiML.tmp#continueType
Type continueType
Properties
content complex
Model
Children breath, continueLength, equipment, instruction, instructionDescription, intensity, length, rest, stroke, underwater
Instance

<continue xmlns="https://github.com/bartneck/swiML">
  <continueLength>{0,1}</continueLength>
  <length>{0,1}</length>
  <stroke>{0,1}</stroke>
  <rest>{0,1}</rest>
  <intensity>{0,1}</intensity>
  <breath>{0,1}</breath>
  <underwater>{0,1}</underwater>
  <equipment>{0,unbounded}</equipment>
  <instructionDescription>{0,1}</instructionDescription>
  <instruction>{1,unbounded}</instruction>
</continue>
Asserts
Test XPath default namespace Annotation
(count(.//sw:instruction/sw:rest) = 0)
ensures no rest tags occur within the instructions of a continue
only at top level
Source

<xs:element name="continue" type="continueType">
  <xs:annotation>
    <xs:documentation>Instruction process element to denote a continuosly swum block of instructions.</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]

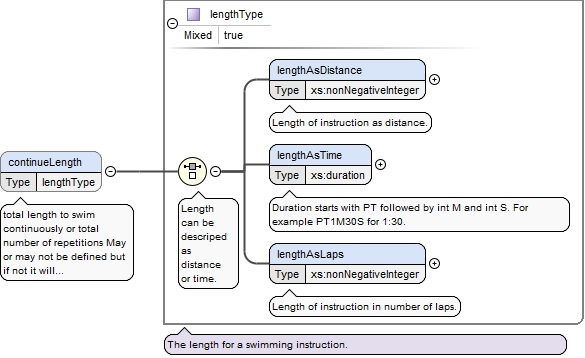

Element continueType / continueLength
Namespace https://github.com/bartneck/swiML
Annotations

total length to swim continuously or total number of
repetitions May or may not be defined but if not it will automatically
calculated from given instructions
Diagram
DiagramswiML.tmp#lengthType_lengthAsDistanceswiML.tmp#lengthType_lengthAsTimeswiML.tmp#lengthType_lengthAsLapsswiML.tmp#lengthType
Type lengthType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Model
Children lengthAsDistance, lengthAsLaps, lengthAsTime
Instance

<continueLength xmlns="https://github.com/bartneck/swiML">
  <lengthAsDistance>{1,1}</lengthAsDistance>
  <lengthAsTime>{1,1}</lengthAsTime>
  <lengthAsLaps>{1,1}</lengthAsLaps>
</continueLength>
Source

<xs:element name="continueLength" minOccurs="0" maxOccurs="1" type="lengthType">
  <xs:annotation>
    <xs:documentation>total length to swim continuously or total number of repetitions May or may not be defined but if not it will automatically calculated from given instructions</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Element continueType / instruction
Namespace https://github.com/bartneck/swiML
Annotations

A continue can include any number of instructions, which in
turn can contain repetitions or any other complex instruction
type.
Diagram
DiagramswiML.tmp#instructionType_segmentNameswiML.tmp#instructionType_repetitionswiML.tmp#instructionType_pyramidswiML.tmp#instructionType_continueswiML.tmp#instructionGroup_lengthswiML.tmp#instructionGroup_strokeswiML.tmp#instructionGroup_restswiML.tmp#instructionGroup_intensityswiML.tmp#instructionGroup_breathswiML.tmp#instructionGroup_underwaterswiML.tmp#instructionGroup_equipmentswiML.tmp#instructionGroup_instructionDescriptionswiML.tmp#instructionGroupswiML.tmp#instructionType_excludeAlignswiML.tmp#instructionType
Type instructionType
Properties
content complex
minOccurs 1
maxOccurs unbounded
mixed true
Model
Children breath, continue, equipment, excludeAlign, instructionDescription, intensity, length, pyramid, repetition, rest, segmentName, stroke, underwater
Instance

<instruction xmlns="https://github.com/bartneck/swiML">
  <segmentName>{0,1}</segmentName>
  <repetition>{1,1}</repetition>
  <pyramid>{1,1}</pyramid>
  <continue>{1,1}</continue>
  <length>{0,1}</length>
  <stroke>{0,1}</stroke>
  <rest>{0,1}</rest>
  <intensity>{0,1}</intensity>
  <breath>{0,1}</breath>
  <underwater>{0,1}</underwater>
  <equipment>{0,unbounded}</equipment>
  <instructionDescription>{0,1}</instructionDescription>
  <excludeAlign>{0,1}</excludeAlign>
</instruction>
Asserts
Test XPath default namespace Annotation
(./ancestor-or-self::*/sw:stroke and ./ancestor-or-self::*/sw:length) or ./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName
checks every instruction has stroke, rest and length defined
any other element in an instruction doesnt have to be defined
if (not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)) then ( every $element in ./* satisfies ( every $match in ./ancestor::*[name() = 'instruction' or name() = 'repetition' or name() = 'continue' or name() = 'pyramid'][not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)]/*[name() = 'length' or name() = 'stroke' or name() = 'rest' or name() = 'intensity' or name() = 'breath' or name() = 'underwater'] satisfies not(name($element) = name($match)) )) else (true())
returns false if any instruction has a repeating element, e.g two different defined lengths
if (not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)) then ( every $element in ./*[name() = 'equipment'] satisfies ( every $match in ./ancestor::*[name() = 'instruction' or name() = 'repetition' or name() = 'continue' or name() = 'pyramid'][not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)]/*[name() = 'equipment'] satisfies not($element/text() = $match/text()) )) else (true())
returns false if any instruction has a repeating equipment, e.g two seperate equipment elements both containing fins
if (count(./sw:segmentName) > 0) then (count(./sw:segmentName/../../ancestor::*) = 0) else (true())
returns false if any segmentName element is not at the top level e.g. it is nested within a repetition
every $stroke in ./sw:stroke satisfies if ($stroke/sw:standardStroke = 'individualMedleyOverlap' or $stroke/sw:standardStroke = 'individualMedleyOrder' or $stroke/sw:standardStroke = 'reverseIndividualMedleyOrder' or $stroke/sw:kicking/sw:standardKick = 'individualMedleyOverlap' or $stroke/sw:kicking/sw:standardKick = 'individualMedleyOrder' or $stroke/sw:kicking/sw:standardKick = 'reverseIndividualMedleyOrder' or$stroke/sw:drill/sw:drillStroke = 'individualMedleyOverlap' or $stroke/sw:drill/sw:drillStroke = 'individualMedleyOrder' or $stroke/sw:drill/sw:drillStroke = 'reverseIndividualMedleyOrder') then ($stroke/ancestor::*/sw:repetition) or ($stroke/ancestor::*/sw:continue/sw:continueLength) else ($stroke/parent::*)
checks all strokes to make sure medley order or overlaps are only
used in a repetition
Identity constraints
QName Type Refer Selector Field(s)
contEquipmentUnique unique ./sw:equipment .
Source

<xs:element name="instruction" minOccurs="1" maxOccurs="unbounded" type="instructionType">
  <xs:annotation>
    <xs:documentation>A continue can include any number of instructions, which in turn can contain repetitions or any other complex instruction type.</xs:documentation>
  </xs:annotation>
  <xs:unique name="contEquipmentUnique">
    <xs:annotation>
      <xs:documentation>Ensures all equipment values in an instruction are unique</xs:documentation>
    </xs:annotation>
    <xs:selector xpath="./sw:equipment"/>
    <xs:field xpath="."/>
  </xs:unique>
</xs:element>
[ top ]
Element instructionType / excludeAlign
Namespace https://github.com/bartneck/swiML
Annotations

If true xslt will exclude from alignment
process
Diagram
Diagram
Type xs:boolean
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="excludeAlign" type="xs:boolean" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>If true xslt will exclude from alignment process</xs:documentation>
  </xs:annotation>
</xs:element>
[ top ]
Simple Type titleString
Namespace https://github.com/bartneck/swiML
Annotations

The length of the title is constraint in length.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 60
Used by
Element program/title
Source

<xs:simpleType name="titleString">
  <xs:annotation>
    <xs:documentation>The length of the title is constraint in length.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="60"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type emailAddress
Namespace https://github.com/bartneck/swiML
Annotations

The pattern checks for valid email addresses.
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [^@]+@[^\.]+\..+
Used by
Source

<xs:simpleType name="emailAddress">
  <xs:annotation>
    <xs:documentation>The pattern checks for valid email addresses.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[^@]+@[^\.]+\..+"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type descriptionString
Namespace https://github.com/bartneck/swiML
Annotations

The length of the description text is constraint in
length.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 400
Used by
Source

<xs:simpleType name="descriptionString">
  <xs:annotation>
    <xs:documentation>The length of the description text is constraint in length.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="400"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type lengthUnits
Namespace https://github.com/bartneck/swiML
Annotations

The unit of measurement for the length of the target pool (meter or
yards).
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration meters
enumeration kilometers
enumeration miles
enumeration yards
Used by
Source

<xs:simpleType name="lengthUnits">
  <xs:annotation>
    <xs:documentation>The unit of measurement for the length of the target pool (meter or yards).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="meters"/>
    <xs:enumeration value="kilometers"/>
    <xs:enumeration value="miles"/>
    <xs:enumeration value="yards"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type numeralSystems
Namespace https://github.com/bartneck/swiML
Annotations

Numeral system type to be used for displaying the document
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration decimal
enumeration roman
Used by
Source

<xs:simpleType name="numeralSystems">
  <xs:annotation>
    <xs:documentation>Numeral system type to be used for displaying the document</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="decimal"/>
    <xs:enumeration value="roman"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type instructionType
Namespace https://github.com/bartneck/swiML
Annotations

An instruction can consists of process or a direct instruction on what
to swim.
Diagram
DiagramswiML.tmp#instructionType_segmentNameswiML.tmp#instructionType_repetitionswiML.tmp#instructionType_pyramidswiML.tmp#instructionType_continueswiML.tmp#instructionGroup_lengthswiML.tmp#instructionGroup_strokeswiML.tmp#instructionGroup_restswiML.tmp#instructionGroup_intensityswiML.tmp#instructionGroup_breathswiML.tmp#instructionGroup_underwaterswiML.tmp#instructionGroup_equipmentswiML.tmp#instructionGroup_instructionDescriptionswiML.tmp#instructionGroupswiML.tmp#instructionType_excludeAlign
Properties
mixed true
Used by
Model
Children breath, continue, equipment, excludeAlign, instructionDescription, intensity, length, pyramid, repetition, rest, segmentName, stroke, underwater
Asserts
Test XPath default namespace Annotation
(./ancestor-or-self::*/sw:stroke and ./ancestor-or-self::*/sw:length) or ./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName
checks every instruction has stroke, rest and length defined
any other element in an instruction doesnt have to be defined
if (not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)) then ( every $element in ./* satisfies ( every $match in ./ancestor::*[name() = 'instruction' or name() = 'repetition' or name() = 'continue' or name() = 'pyramid'][not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)]/*[name() = 'length' or name() = 'stroke' or name() = 'rest' or name() = 'intensity' or name() = 'breath' or name() = 'underwater'] satisfies not(name($element) = name($match)) )) else (true())
returns false if any instruction has a repeating element, e.g two different defined lengths
if (not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)) then ( every $element in ./*[name() = 'equipment'] satisfies ( every $match in ./ancestor::*[name() = 'instruction' or name() = 'repetition' or name() = 'continue' or name() = 'pyramid'][not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)]/*[name() = 'equipment'] satisfies not($element/text() = $match/text()) )) else (true())
returns false if any instruction has a repeating equipment, e.g two seperate equipment elements both containing fins
if (count(./sw:segmentName) > 0) then (count(./sw:segmentName/../../ancestor::*) = 0) else (true())
returns false if any segmentName element is not at the top level e.g. it is nested within a repetition
every $stroke in ./sw:stroke satisfies if ($stroke/sw:standardStroke = 'individualMedleyOverlap' or $stroke/sw:standardStroke = 'individualMedleyOrder' or $stroke/sw:standardStroke = 'reverseIndividualMedleyOrder' or $stroke/sw:kicking/sw:standardKick = 'individualMedleyOverlap' or $stroke/sw:kicking/sw:standardKick = 'individualMedleyOrder' or $stroke/sw:kicking/sw:standardKick = 'reverseIndividualMedleyOrder' or$stroke/sw:drill/sw:drillStroke = 'individualMedleyOverlap' or $stroke/sw:drill/sw:drillStroke = 'individualMedleyOrder' or $stroke/sw:drill/sw:drillStroke = 'reverseIndividualMedleyOrder') then ($stroke/ancestor::*/sw:repetition) or ($stroke/ancestor::*/sw:continue/sw:continueLength) else ($stroke/parent::*)
checks all strokes to make sure medley order or overlaps are only
used in a repetition
Source

<xs:complexType name="instructionType" mixed="true">
  <xs:annotation>
    <xs:documentation>An instruction can consists of process or a direct instruction on what to swim.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:choice>
      <xs:annotation>
        <xs:documentation>The different types of instructions,</xs:documentation>
      </xs:annotation>
      <!-- ====================================================== -->
      <!-- Process based elements for instructions -->
      <xs:element name="segmentName" minOccurs="0" maxOccurs="1" type="segmentNameType"/>
      <xs:element name="repetition" type="repetitionType">
        <xs:annotation>
          <xs:documentation>Instruction process element to repeat enclosed instructions.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="pyramid" type="pyramidType">
        <xs:annotation>
          <xs:documentation>Instruction process element to swim a pyramid.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="continue" type="continueType">
        <xs:annotation>
          <xs:documentation>Instruction process element to denote a continuosly swum block of instructions.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <!-- ====================================================== -->
      <!-- Direct instruction on what to swim -->
      <xs:group ref="instructionGroup"/>
    </xs:choice>
    <xs:element name="excludeAlign" type="xs:boolean" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>If true xslt will exclude from alignment process</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
  <!-- checks every instruction has stroke, rest and length defined
        any other element in an instruction doesnt have to be defined-->
  <xs:assert test="                 (./ancestor-or-self::*/sw:stroke                 and ./ancestor-or-self::*/sw:length)                 or ./sw:repetition                 or ./sw:continue                 or ./sw:pyramid                 or ./sw:segmentName             ">
    <xs:annotation>
      <xs:documentation>checks every instruction has stroke, rest and length defined any other element in an instruction doesnt have to be defined</xs:documentation>
    </xs:annotation>
  </xs:assert>
  <!-- checks every instruction doesnt have repetitions of elements defined and cannot be extended -->
  <xs:assert test="                 if (not(./sw:repetition                 or ./sw:continue                 or ./sw:pyramid                 or ./sw:segmentName))                 then                     (                     every $element in ./*                         satisfies (                         every $match in ./ancestor::*[name() = 'instruction' or name() = 'repetition' or name() = 'continue' or name() = 'pyramid'][not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)]/*[name() = 'length' or name() = 'stroke' or name() = 'rest' or name() = 'intensity' or name() = 'breath' or name() = 'underwater']                             satisfies                             not(name($element) = name($match))                         ))                 else                     (true())                 ">
    <xs:annotation>
      <xs:documentation>returns false if any instruction has a repeating element, e.g two different defined lengths</xs:documentation>
    </xs:annotation>
  </xs:assert>
  <xs:assert test="                 if (not(./sw:repetition                 or ./sw:continue                 or ./sw:pyramid                 or ./sw:segmentName))                 then                     (                     every $element in ./*[name() = 'equipment']                         satisfies (                         every $match in ./ancestor::*[name() = 'instruction' or name() = 'repetition' or name() = 'continue' or name() = 'pyramid'][not(./sw:repetition or ./sw:continue or ./sw:pyramid or ./sw:segmentName)]/*[name() = 'equipment']                             satisfies                             not($element/text() = $match/text())                         ))                 else                     (true())                 ">
    <xs:annotation>
      <xs:documentation>returns false if any instruction has a repeating equipment, e.g two seperate equipment elements both containing fins</xs:documentation>
    </xs:annotation>
  </xs:assert>
  <xs:assert test="                 if (count(./sw:segmentName) > 0)                 then                     (count(./sw:segmentName/../../ancestor::*) = 0)                 else                     (true())                 ">
    <xs:annotation>
      <xs:documentation>returns false if any segmentName element is not at the top level e.g. it is nested within a repetition</xs:documentation>
    </xs:annotation>
  </xs:assert>
  <!-- check if this is just for standard stroke or for kicks and drills too -->
  <xs:assert test="                 every $stroke in ./sw:stroke                     satisfies                     if ($stroke/sw:standardStroke = 'individualMedleyOverlap' or $stroke/sw:standardStroke = 'individualMedleyOrder' or $stroke/sw:standardStroke = 'reverseIndividualMedleyOrder'                     or $stroke/sw:kicking/sw:standardKick = 'individualMedleyOverlap' or $stroke/sw:kicking/sw:standardKick = 'individualMedleyOrder' or $stroke/sw:kicking/sw:standardKick = 'reverseIndividualMedleyOrder'                     or$stroke/sw:drill/sw:drillStroke = 'individualMedleyOverlap' or $stroke/sw:drill/sw:drillStroke = 'individualMedleyOrder' or $stroke/sw:drill/sw:drillStroke = 'reverseIndividualMedleyOrder')                     then                         ($stroke/ancestor::*/sw:repetition)                         or                         ($stroke/ancestor::*/sw:continue/sw:continueLength)                     else                         ($stroke/parent::*)                                                           ">
    <xs:annotation>
      <xs:documentation>checks all strokes to make sure medley order or overlaps are only used in a repetition</xs:documentation>
    </xs:annotation>
  </xs:assert>
</xs:complexType>
[ top ]
Simple Type segmentNameType
Namespace https://github.com/bartneck/swiML
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 50
Used by
Source

<xs:simpleType name="segmentNameType">
  <xs:restriction base="xs:string">
    <xs:maxLength value=" 50"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type repetitionType
Namespace https://github.com/bartneck/swiML
Annotations
Diagram
DiagramswiML.tmp#repetitionType_repetitionCountswiML.tmp#repetitionType_simplifyswiML.tmp#repetitionType_repetitionDescriptionswiML.tmp#instructionGroup_lengthswiML.tmp#instructionGroup_strokeswiML.tmp#instructionGroup_restswiML.tmp#instructionGroup_intensityswiML.tmp#instructionGroup_breathswiML.tmp#instructionGroup_underwaterswiML.tmp#instructionGroup_equipmentswiML.tmp#instructionGroup_instructionDescriptionswiML.tmp#instructionGroupswiML.tmp#repetitionType_instruction
Used by
Model
Children breath, equipment, instruction, instructionDescription, intensity, length, repetitionCount, repetitionDescription, rest, simplify, stroke, underwater
Asserts
Test XPath default namespace Annotation
if(./sw:simplify = true())then( ( every $instruction in ./sw:instruction[not(./sw:pyramid or ./sw:segmentName)] satisfies( (if($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)]) then( if(count($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)]) = 1) then( number( ($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsDistance ) ) else( sum( ($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsDistance ) ) ) else( 0 )+( if($instruction/descendant-or-self::sw:continueLength) then( number($instruction/descendant-or-self::sw:continueLength) ) else( 0 ) )) = number( ( ( (./descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsDistance ) | ( ./descendant-or-self::sw:continueLength ) )[1] ) ) )or( every $instruction in ./sw:instruction[not(./sw:pyramid or ./sw:segmentName)] satisfies( (if($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)]) then( if(count($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)]) = 1) then( number( ($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsLaps ) ) else( sum( ($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsLaps ) ) ) else( 0 )+( if($instruction/descendant-or-self::sw:continueLength) then( number( $instruction/descendant-or-self::sw:continueLength ) ) else( 0 ) )) = number( ( ( (./descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsLaps ) | ( ./descendant-or-self::sw:continueLength ) )[1] ) ) ) )else( true() )
checks all lengths within simplified repetition are the same
Does this by using two seperate statments so that either all lengthAsDistances are the same or all lengthAsLaps
checks that every instruction, repetition and continue has the same base length e.g. 100m , 4x100m and 50,50 swim as 100 ; these are all of length 100 so can be simplified in the same repetition
has to choose whether to use continueLength or add up all instructions within a continue
./sw:simplify[text() = 'true'] or ./sw:repetitionCount and not(./sw:simplify[text() = 'true'] and ./sw:repetitionCount)
Source

<xs:complexType name="repetitionType">
  <xs:annotation>
    <xs:documentation/>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="repetitionCount" type="xs:nonNegativeInteger" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Count of repetition.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="simplify" minOccurs="0" maxOccurs="1" type="xs:boolean">
      <xs:annotation>
        <xs:documentation>true -> repetition tag is simplifying a larger set of repetitions false -> normal repetition</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="repetitionDescription" minOccurs="0" maxOccurs="1" type="instructionDescriptionType">
      <xs:annotation>
        <xs:documentation>Additional information for the repetition. This can be used to customise the repetition.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <!-- Common elements for instructions -->
    <xs:group ref="instructionGroup"/>
    <!-- This is the main recursion statement. Every repetition contains instructions. -->
    <!-- Every instruction can contain a repetition -->
    <xs:element name="instruction" minOccurs="1" maxOccurs="unbounded" type="instructionType">
      <xs:annotation>
        <xs:documentation>A repetition can include any number of instructions, which in turn can contain repetitions or continues.</xs:documentation>
      </xs:annotation>
      <xs:unique name="repEquipmentUnique">
        <xs:annotation>
          <xs:documentation>Ensures all equipment values in an instruction are unique</xs:documentation>
        </xs:annotation>
        <xs:selector xpath="./sw:equipment"/>
        <xs:field xpath="."/>
      </xs:unique>
    </xs:element>
  </xs:sequence>
  <!-- ====================================================== -->
  <!-- Assertions -->
  <xs:assert test="             if(./sw:simplify = true())then(                 (                                     every $instruction in ./sw:instruction[not(./sw:pyramid or ./sw:segmentName)] satisfies(                         (if($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)]) then(                             if(count($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)]) = 1) then(                                 number(                                 ($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsDistance                                 )                             ) else(                                 sum(                                 ($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsDistance                                 )                             )                          ) else(                             0                          )+(                             if($instruction/descendant-or-self::sw:continueLength) then(                                 number($instruction/descendant-or-self::sw:continueLength)                             ) else(                                 0                             )                         )) = number(                             (                                 (                                 (./descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsDistance                                 ) | (                                     ./descendant-or-self::sw:continueLength                                 )                             )[1]                         )                     )                )or(                     every $instruction in ./sw:instruction[not(./sw:pyramid or ./sw:segmentName)] satisfies(                         (if($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)]) then(                             if(count($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)]) = 1) then(                                 number(                                 ($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsLaps                                 )                             ) else(                                 sum(                                 ($instruction/descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsLaps                                 )                             )                         ) else(                             0                         )+(                             if($instruction/descendant-or-self::sw:continueLength) then(                                 number(                                     $instruction/descendant-or-self::sw:continueLength                                 )                             ) else(                                 0                             )                         )) = number(                             (                                 (                                 (./descendant-or-self::sw:instruction[not(ancestor::sw:continue/sw:continueLength) and not(./sw:continue/sw:continueLength) and not(./sw:repetition)][1])//(preceding-sibling::sw:length | ancestor-or-self::*/sw:length)[last()]/sw:lengthAsLaps                                 ) | (                                                                 ./descendant-or-self::sw:continueLength                                 )                             )[1]                         )                     )                  )             )else(                 true()             )             ">
    <xs:annotation>
      <xs:documentation>checks all lengths within simplified repetition are the same Does this by using two seperate statments so that either all lengthAsDistances are the same or all lengthAsLaps checks that every instruction, repetition and continue has the same base length e.g. 100m , 4x100m and 50,50 swim as 100 ; these are all of length 100 so can be simplified in the same repetition has to choose whether to use continueLength or add up all instructions within a continue</xs:documentation>
    </xs:annotation>
  </xs:assert>
  <!-- Explain what this assertion does -->
  <xs:assert test="./sw:simplify[text() = 'true'] or ./sw:repetitionCount and not(./sw:simplify[text() = 'true'] and ./sw:repetitionCount)"/>
</xs:complexType>
[ top ]
Simple Type instructionDescriptionType
Namespace https://github.com/bartneck/swiML
Annotations

The length of the description text is constraint in
length.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 100
Used by
Source

<xs:simpleType name="instructionDescriptionType">
  <xs:annotation>
    <xs:documentation>The length of the description text is constraint in length.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type lengthType
Namespace https://github.com/bartneck/swiML
Annotations

The length for a swimming instruction.
Diagram
DiagramswiML.tmp#lengthType_lengthAsDistanceswiML.tmp#lengthType_lengthAsTimeswiML.tmp#lengthType_lengthAsLaps
Properties
mixed true
Used by
Model
Children lengthAsDistance, lengthAsLaps, lengthAsTime
Source

<xs:complexType name="lengthType" mixed="true">
  <xs:annotation>
    <xs:documentation>The length for a swimming instruction.</xs:documentation>
  </xs:annotation>
  <!-- Length as either distance, laps or time -->
  <xs:choice>
    <xs:annotation>
      <xs:documentation>Length can be descriped as distance or time.</xs:documentation>
    </xs:annotation>
    <xs:element name="lengthAsDistance" type="xs:nonNegativeInteger">
      <xs:annotation>
        <xs:documentation>Length of instruction as distance.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lengthAsTime" type="xs:duration">
      <xs:annotation>
        <xs:documentation>Duration starts with PT followed by int M and int S. For example PT1M30S for 1:30.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lengthAsLaps" type="xs:nonNegativeInteger">
      <xs:annotation>
        <xs:documentation>Length of instruction in number of laps.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:choice>
</xs:complexType>
[ top ]
Complex Type strokeType
Namespace https://github.com/bartneck/swiML
Annotations

Stroke types.
Diagram
DiagramswiML.tmp#strokeType_standardStrokeswiML.tmp#strokeType_kickingswiML.tmp#strokeType_drill
Properties
mixed true
Used by
Model
Children drill, kicking, standardStroke
Source

<xs:complexType name="strokeType" mixed="true">
  <xs:annotation>
    <xs:documentation>Stroke types.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="standardStroke" type="standardStrokeType"/>
    <xs:element name="kicking" type="kickStyle"/>
    <xs:element name="drill" type="drillType"/>
  </xs:choice>
</xs:complexType>
[ top ]
Simple Type standardStrokeType
Namespace https://github.com/bartneck/swiML
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration butterfly
enumeration backstroke
enumeration breaststroke
enumeration freestyle
enumeration individualMedley
enumeration reverseIndividualMedley
enumeration individualMedleyOverlap
enumeration individualMedleyOrder
enumeration reverseIndividualMedleyOrder
enumeration any
enumeration nr1
enumeration nr2
enumeration nr3
enumeration nr4
enumeration notButterfly
enumeration notBackstroke
enumeration notBreaststroke
enumeration notFreestyle
Used by
Source

<xs:simpleType name="standardStrokeType">
  <xs:restriction base="xs:string">
    <xs:enumeration value="butterfly"/>
    <xs:enumeration value="backstroke"/>
    <xs:enumeration value="breaststroke"/>
    <xs:enumeration value="freestyle"/>
    <xs:enumeration value="individualMedley"/>
    <xs:enumeration value="reverseIndividualMedley"/>
    <xs:enumeration value="individualMedleyOverlap"/>
    <xs:enumeration value="individualMedleyOrder"/>
    <xs:enumeration value="reverseIndividualMedleyOrder"/>
    <xs:enumeration value="any"/>
    <xs:enumeration value="nr1"/>
    <xs:enumeration value="nr2"/>
    <xs:enumeration value="nr3"/>
    <xs:enumeration value="nr4"/>
    <xs:enumeration value="notButterfly"/>
    <xs:enumeration value="notBackstroke"/>
    <xs:enumeration value="notBreaststroke"/>
    <xs:enumeration value="notFreestyle"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type kickStyle
Namespace https://github.com/bartneck/swiML
Diagram
DiagramswiML.tmp#kickStyle_orientationswiML.tmp#kickStyle_legMovementswiML.tmp#kickStyle_standardKick
Used by
Model
Children legMovement, orientation, standardKick
Source

<xs:complexType name="kickStyle">
  <xs:choice>
    <xs:sequence>
      <xs:element name="orientation" type="orientationType" minOccurs="0" maxOccurs="1">
        <xs:annotation>
          <xs:documentation>The orientation of the swimmers body.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="legMovement" type="legMovementType" minOccurs="1" maxOccurs="1">
        <xs:annotation>
          <xs:documentation>The style of the leg movements.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
    <xs:element name="standardKick" minOccurs="1" maxOccurs="1" type="standardStrokeType"/>
  </xs:choice>
</xs:complexType>
[ top ]
Simple Type orientationType
Namespace https://github.com/bartneck/swiML
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration front
enumeration back
enumeration left
enumeration right
enumeration side
enumeration vertical
enumeration waka
Used by
Source

<xs:simpleType name="orientationType">
  <xs:restriction base="xs:string">
    <xs:enumeration value="front"/>
    <xs:enumeration value="back"/>
    <xs:enumeration value="left"/>
    <xs:enumeration value="right"/>
    <xs:enumeration value="side"/>
    <xs:enumeration value="vertical"/>
    <xs:enumeration value="waka"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type legMovementType
Namespace https://github.com/bartneck/swiML
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration flutter
enumeration dolphin
enumeration scissor
Used by
Source

<xs:simpleType name="legMovementType">
  <xs:restriction base="xs:string">
    <xs:enumeration value="flutter"/>
    <xs:enumeration value="dolphin"/>
    <xs:enumeration value="scissor"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type drillType
Namespace https://github.com/bartneck/swiML
Annotations

Drill type consists of a drill name and a stroke. For example, this
could mean 6 kick drill freestyle.
Diagram
DiagramswiML.tmp#drillType_drillNameswiML.tmp#drillType_drillStroke
Used by
Model
Children drillName, drillStroke
Source

<xs:complexType name="drillType">
  <xs:annotation>
    <xs:documentation>Drill type consists of a drill name and a stroke. For example, this could mean 6 kick drill freestyle.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="drillName" minOccurs="0" maxOccurs="1" type="drillNameType"/>
    <xs:element name="drillStroke" type="standardStrokeType" maxOccurs="1" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Drills are based on stroke types. For example, the drill 123 can be swum with freestyle or backstroke.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
[ top ]
Simple Type drillNameType
Namespace https://github.com/bartneck/swiML
Annotations

Drill names.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 6KickDrill
enumeration 8KickDrill
enumeration 10KickDrill
enumeration 12KickDrill
enumeration fingerTrails
enumeration 123
enumeration bigDog
enumeration scull
enumeration singleArm
enumeration any
enumeration technic
enumeration dogPaddle
enumeration tarzan
enumeration fist
enumeration 2Kick1Pull
enumeration 3Kick1Pull
enumeration 2Pull1Kick
enumeration 3Pull1Kick
enumeration 3Right3Left
enumeration 2Right2Left
enumeration other
Used by
Source

<xs:simpleType name="drillNameType">
  <xs:annotation>
    <xs:documentation>Drill names.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="6KickDrill"/>
    <xs:enumeration value="8KickDrill"/>
    <xs:enumeration value="10KickDrill"/>
    <xs:enumeration value="12KickDrill"/>
    <xs:enumeration value="fingerTrails"/>
    <xs:enumeration value="123"/>
    <xs:enumeration value="bigDog"/>
    <xs:enumeration value="scull"/>
    <xs:enumeration value="singleArm"/>
    <xs:enumeration value="any"/>
    <xs:enumeration value="technic"/>
    <xs:enumeration value="dogPaddle"/>
    <xs:enumeration value="tarzan"/>
    <xs:enumeration value="fist"/>
    <xs:enumeration value="2Kick1Pull"/>
    <xs:enumeration value="3Kick1Pull"/>
    <xs:enumeration value="2Pull1Kick"/>
    <xs:enumeration value="3Pull1Kick"/>
    <xs:enumeration value="3Right3Left"/>
    <xs:enumeration value="2Right2Left"/>
    <xs:enumeration value="other"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type restType
Namespace https://github.com/bartneck/swiML
Annotations

The length units for a rest after a swimming
instruction.
Diagram
DiagramswiML.tmp#restType_afterStopswiML.tmp#restType_sinceStartswiML.tmp#restType_sinceLastRestswiML.tmp#restType_inOut
Properties
mixed true
Used by
Model
Children afterStop, inOut, sinceLastRest, sinceStart
Source

<xs:complexType name="restType" mixed="true">
  <xs:annotation>
    <xs:documentation>The length units for a rest after a swimming instruction.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="afterStop" type="xs:duration">
      <xs:annotation>
        <xs:documentation>Duration of rest after stopping a swimming instruction. Example: 20 seconds means that the swimmer will rest for 20 seconds after stopping the current instructions.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sinceStart" type="xs:duration">
      <xs:annotation>
        <xs:documentation>The interval on which swimming instructions start. Example: on 1:30 means that the next instructions starts after 1:30 from starting the current instruction.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sinceLastRest" type="xs:duration">
      <xs:annotation>
        <xs:documentation>The time since the end of the last rest. This is useful when several instructions without a rest period are swum, followed by a since start type rest.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="inOut" type="xs:nonNegativeInteger">
      <xs:annotation>
        <xs:documentation>Number of swimmers arriving. Example: 3rd in: Once the 3rd swimmer in the lane arrives, the 1st swimmer starts.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:choice>
</xs:complexType>
[ top ]
Complex Type intensityProfile
Namespace https://github.com/bartneck/swiML
Annotations

The intensity of the instruction. When given at the lowest level just
start intensity indicates a constant intensity if the stop intensity is given then
it is a build within the instruction If the intensity is given at a higher level
(repetition or continue) just start intensity is the same constant for all child
instructions given a stop intensity then it is descending/ascending over the child
instructions
Diagram
DiagramswiML.tmp#intensityProfile_startIntensityswiML.tmp#intensityProfile_stopIntensity
Properties
mixed true
Used by
Model
Children startIntensity, stopIntensity
Source

<xs:complexType name="intensityProfile" mixed="true">
  <xs:annotation>
    <xs:documentation>The intensity of the instruction. When given at the lowest level just start intensity indicates a constant intensity if the stop intensity is given then it is a build within the instruction If the intensity is given at a higher level (repetition or continue) just start intensity is the same constant for all child instructions given a stop intensity then it is descending/ascending over the child instructions</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="startIntensity" minOccurs="1" maxOccurs="1" type="intensityType"/>
    <xs:element name="stopIntensity" minOccurs="0" maxOccurs="1" type="intensityType"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type intensityType
Namespace https://github.com/bartneck/swiML
Annotations

The intensity of the instructions.
Diagram
DiagramswiML.tmp#intensityType_percentageEffortswiML.tmp#intensityType_zoneswiML.tmp#intensityType_percentageHeartRate
Used by
Model
Children percentageEffort, percentageHeartRate, zone
Source

<xs:complexType name="intensityType">
  <xs:annotation>
    <xs:documentation>The intensity of the instructions.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="percentageEffort" type="percentType">
      <xs:annotation>
        <xs:documentation>Effort in percentage. Example: 100 means maximum effort.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="zone" type="zoneType">
      <xs:annotation>
        <xs:documentation>Effort in training zone.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="percentageHeartRate" type="percentType">
      <xs:annotation>
        <xs:documentation>Heart rate in percentage of maximum heart rate.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:choice>
</xs:complexType>
[ top ]
Simple Type percentType
Namespace https://github.com/bartneck/swiML
Annotations

The percent type specifies a value from 0 to 100.
Diagram
Diagram
Type restriction of xs:decimal
Facets
maxInclusive 100
minInclusive 0
Used by
Source

<xs:simpleType name="percentType">
  <xs:annotation>
    <xs:documentation>The percent type specifies a value from 0 to 100.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="100"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type zoneType
Namespace https://github.com/bartneck/swiML
Annotations

The intensity zone.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration easy
enumeration threshold
enumeration endurance
enumeration racePace
enumeration max
Used by
Source

<xs:simpleType name="zoneType">
  <xs:annotation>
    <xs:documentation>The intensity zone.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="easy"/>
    <xs:enumeration value="threshold"/>
    <xs:enumeration value="endurance"/>
    <xs:enumeration value="racePace"/>
    <xs:enumeration value="max"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type equipmentType
Namespace https://github.com/bartneck/swiML
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration board
enumeration pads
enumeration pullBuoy
enumeration fins
enumeration snorkle
enumeration chute
enumeration stretchCord
Used by
Source

<xs:simpleType name="equipmentType">
  <xs:restriction base="xs:string">
    <xs:enumeration value="board"/>
    <xs:enumeration value="pads"/>
    <xs:enumeration value="pullBuoy"/>
    <xs:enumeration value="fins"/>
    <xs:enumeration value="snorkle"/>
    <xs:enumeration value="chute"/>
    <xs:enumeration value="stretchCord"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Complex Type pyramidType
Namespace https://github.com/bartneck/swiML
Annotations

Pyramids start with short instructions (e.g. 50) and increase to their
stop length (e.g. 200). They then decrease back to the start
length.
Diagram
DiagramswiML.tmp#pyramidType_startLengthswiML.tmp#pyramidType_stopLengthswiML.tmp#pyramidType_incrementswiML.tmp#pyramidType_incremenentLengthUnitswiML.tmp#pyramidType_isPointyswiML.tmp#instructionGroup_lengthswiML.tmp#instructionGroup_strokeswiML.tmp#instructionGroup_restswiML.tmp#instructionGroup_intensityswiML.tmp#instructionGroup_breathswiML.tmp#instructionGroup_underwaterswiML.tmp#instructionGroup_equipmentswiML.tmp#instructionGroup_instructionDescriptionswiML.tmp#instructionGroup
Used by
Model
Children breath, equipment, incremenentLengthUnit, increment, instructionDescription, intensity, isPointy, length, rest, startLength, stopLength, stroke, underwater
Asserts
Test XPath default namespace Annotation
(./sw:startLength/sw:lengthAsDistance and ./sw:stopLength/sw:lengthAsDistance) or (./sw:startLength/sw:lengthAsLaps and ./sw:stopLength/sw:lengthAsLaps) or (./sw:startLength/sw:lengthAsTime and ./sw:stopLength/sw:lengthAsTime)
Source

<xs:complexType name="pyramidType">
  <xs:annotation>
    <xs:documentation>Pyramids start with short instructions (e.g. 50) and increase to their stop length (e.g. 200). They then decrease back to the start length.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="startLength" minOccurs="1" maxOccurs="1" type="lengthType">
      <xs:annotation>
        <xs:documentation>The start length of the pyramid.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="stopLength" minOccurs="1" maxOccurs="1" type="lengthType">
      <xs:annotation>
        <xs:documentation>The stop length of the pyramid. This is the highest point of the pyramid.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="increment" minOccurs="1" maxOccurs="1" type="xs:nonNegativeInteger">
      <xs:annotation>
        <xs:documentation>The increment at which the pyramid increases. This defines the slope.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="incremenentLengthUnit" type="lengthUnits" minOccurs="0" maxOccurs="1"/>
    <xs:element name="isPointy" minOccurs="1" maxOccurs="1" type="xs:boolean">
      <xs:annotation>
        <xs:documentation>A pointy pyramid swims the stop length only once. A non-pointy pyramid swims the stop length twice.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:group ref="instructionGroup"/>
  </xs:sequence>
  <xs:assert test="             (./sw:startLength/sw:lengthAsDistance and ./sw:stopLength/sw:lengthAsDistance)             or (./sw:startLength/sw:lengthAsLaps and ./sw:stopLength/sw:lengthAsLaps)             or (./sw:startLength/sw:lengthAsTime and ./sw:stopLength/sw:lengthAsTime)             "/>
</xs:complexType>
[ top ]
Complex Type continueType
Namespace https://github.com/bartneck/swiML
Annotations

Continues for when different strokes, equipment or styles need to be
swum continuously
Diagram
DiagramswiML.tmp#continueType_continueLengthswiML.tmp#instructionGroup_lengthswiML.tmp#instructionGroup_strokeswiML.tmp#instructionGroup_restswiML.tmp#instructionGroup_intensityswiML.tmp#instructionGroup_breathswiML.tmp#instructionGroup_underwaterswiML.tmp#instructionGroup_equipmentswiML.tmp#instructionGroup_instructionDescriptionswiML.tmp#instructionGroupswiML.tmp#continueType_instruction
Used by
Model
Children breath, continueLength, equipment, instruction, instructionDescription, intensity, length, rest, stroke, underwater
Asserts
Test XPath default namespace Annotation
(count(.//sw:instruction/sw:rest) = 0)
ensures no rest tags occur within the instructions of a continue
only at top level
Source

<xs:complexType name="continueType">
  <xs:annotation>
    <xs:documentation>Continues for when different strokes, equipment or styles need to be swum continuously</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="continueLength" minOccurs="0" maxOccurs="1" type="lengthType">
      <xs:annotation>
        <xs:documentation>total length to swim continuously or total number of repetitions May or may not be defined but if not it will automatically calculated from given instructions</xs:documentation>
      </xs:annotation>
    </xs:element>
    <!-- Common elements for instructions -->
    <xs:group ref="instructionGroup"/>
    <xs:element name="instruction" minOccurs="1" maxOccurs="unbounded" type="instructionType">
      <xs:annotation>
        <xs:documentation>A continue can include any number of instructions, which in turn can contain repetitions or any other complex instruction type.</xs:documentation>
      </xs:annotation>
      <xs:unique name="contEquipmentUnique">
        <xs:annotation>
          <xs:documentation>Ensures all equipment values in an instruction are unique</xs:documentation>
        </xs:annotation>
        <xs:selector xpath="./sw:equipment"/>
        <xs:field xpath="."/>
      </xs:unique>
    </xs:element>
  </xs:sequence>
  <!-- ====================================================== -->
  <!-- Assertions -->
  <!-- Explain what this assertion does -->
  <xs:assert test="(count(.//sw:instruction/sw:rest) = 0)">
    <xs:annotation>
      <xs:documentation>ensures no rest tags occur within the instructions of a continue only at top level</xs:documentation>
    </xs:annotation>
  </xs:assert>
</xs:complexType>
[ top ]
Simple Type equipmentList
Namespace https://github.com/bartneck/swiML
Diagram
DiagramswiML.tmp#equipmentType
Type list of equipmentType
Source

<xs:simpleType name="equipmentList">
  <xs:list itemType="equipmentType"/>
</xs:simpleType>
[ top ]
Element Group instructionGroup
Namespace https://github.com/bartneck/swiML
Diagram
DiagramswiML.tmp#instructionGroup_lengthswiML.tmp#instructionGroup_strokeswiML.tmp#instructionGroup_restswiML.tmp#instructionGroup_intensityswiML.tmp#instructionGroup_breathswiML.tmp#instructionGroup_underwaterswiML.tmp#instructionGroup_equipmentswiML.tmp#instructionGroup_instructionDescription
Used by
Model
Children breath, equipment, instructionDescription, intensity, length, rest, stroke, underwater
Source

<xs:group name="instructionGroup">
  <xs:sequence>
    <xs:annotation>
      <xs:documentation>Sequence of basic elements for an instruction.</xs:documentation>
    </xs:annotation>
    <xs:element name="length" minOccurs="0" maxOccurs="1" type="lengthType">
      <xs:annotation>
        <xs:documentation>The length of the instruction.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="stroke" minOccurs="0" maxOccurs="1" type="strokeType">
      <xs:annotation>
        <xs:documentation>The stroke to swim. This includes basic strokes, kicking and drills.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rest" minOccurs="0" maxOccurs="1" type="restType">
      <xs:annotation>
        <xs:documentation>The rest period after the instruction.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="intensity" minOccurs="0" maxOccurs="1" type="intensityProfile">
      <xs:annotation>
        <xs:documentation>The intensity at which to swim the instruction.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="breath" minOccurs="0" maxOccurs="1" type="xs:nonNegativeInteger">
      <xs:annotation>
        <xs:documentation>Number of arm strokes per breath.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="underwater" minOccurs="0" maxOccurs="1" type="xs:boolean">
      <xs:annotation>
        <xs:documentation>True if swimming under water.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="equipment" minOccurs="0" maxOccurs="unbounded" type="equipmentType">
      <xs:annotation>
        <xs:documentation>Equipment to be used, such as board or pads.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="instructionDescription" type="instructionDescriptionType" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Short description to modify the instrution.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:group>
[ top ]
XML Schema documentation generated by ® XML Editor.
